S34ML04G200TFI000 - Spansion

Description: Flash Memory 4G, 3V, 25ns NAND Flash

Download S34ML04G200TFI000 Model

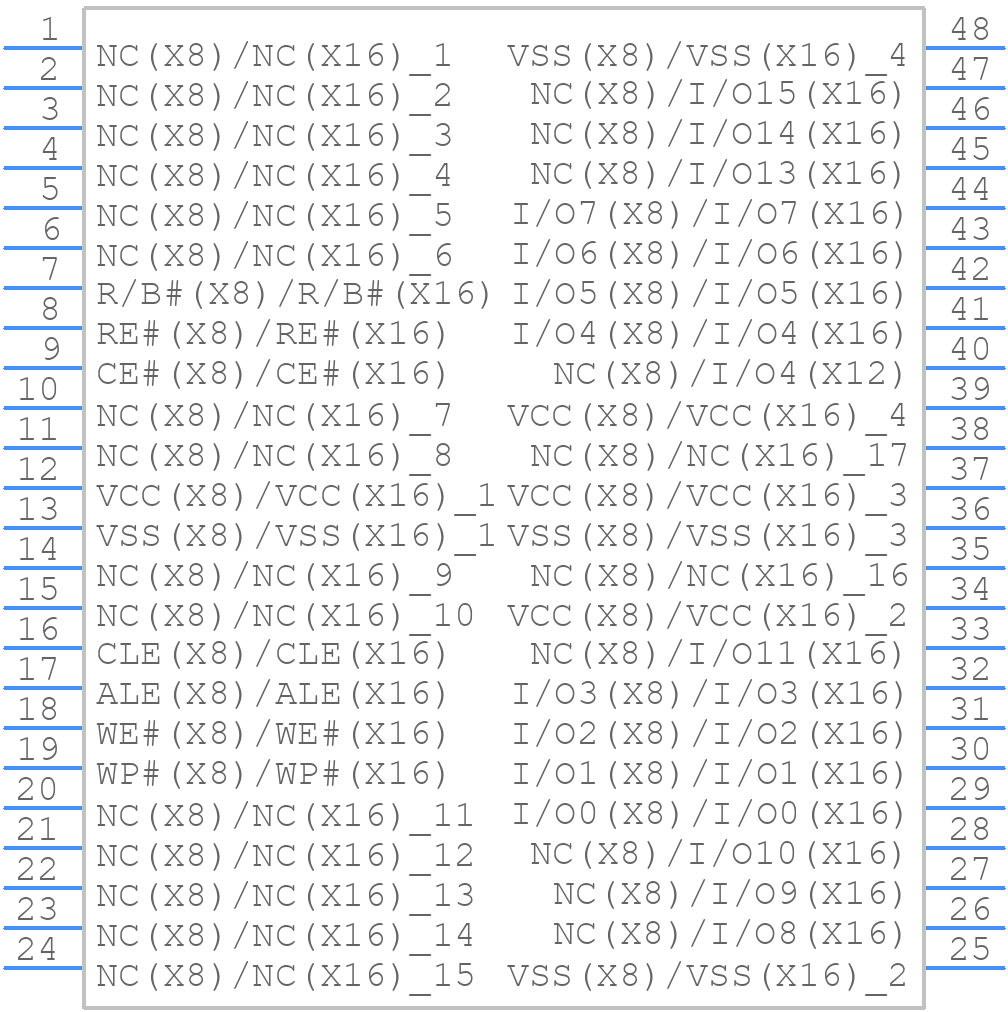

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S34ML04G200TFI000 - Spansion PCB footprint - Small Outline Packages - Small Outline Packages - TSOP1 48PIN
click to zoom
3D Models
S34ML04G200TFI000 - Spansion  - 3D model - Small Outline Packages - TSOP1 48PIN
click to zoom

S34ML04G200TFI000 Details

  • Manufacturer Part Number:

    S34ML04G200TFI000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    TSOP1-48

  • ECCN Code:

    3A991.B.1.A

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Spansion

  • Access Time-Max:

    25 ns

  • Command User Interface:

    YES

  • Common Flash Interface:

    NO

  • Data Polling:

    NO

  • Data Retention Time-Min:

    10

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Sectors/Size:

    4K

  • Number of Terminals:

    48

  • Number of Words:

    536870912 words

  • Number of Words Code:

    512000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Page Size:

    2K words

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3.3 V

  • Qualification Status:

    Not Qualified

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    128K

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    NO

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.000025 ms

S34ML04G200TFI000 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S34ML04G200TFI000 is -40°C to 85°C.
  • The hold signal (HOLD#) should be asserted low to pause the current operation and enter a low-power state. De-asserting HOLD# resumes the operation.
  • The recommended power-up sequence is to apply VCC first, followed by VPP, and then the clock signal.
  • The write protection feature can be enabled by setting the WP# pin low. This prevents any write operations to the device.
  • The sector protection feature allows the user to permanently lock specific sectors to prevent accidental erasure or modification.
