The recommended operating temperature range for S34ML04G200TFV000 is -40°C to 85°C, but it's always best to check the specific datasheet or consult with the manufacturer for precise information.
The power-on reset and initialization sequence for S34ML04G200TFV000 typically involves applying a power-on reset signal, waiting for the internal reset to complete, and then sending a software reset command. Refer to the datasheet or application notes for specific details.
The S34ML04G200TFV000 supports up to 3,000 to 5,000 erase cycles, depending on the specific device grade and operating conditions. It's essential to consult the datasheet or manufacturer's documentation for precise information.
Wear leveling and bad block management for S34ML04G200TFV000 typically involve implementing algorithms to distribute write cycles evenly across the memory, detecting and replacing bad blocks, and maintaining a block map. Consult the datasheet, application notes, or manufacturer's documentation for guidance.
The timing requirements for read and write operations on S34ML04G200TFV000 include parameters such as clock frequency, rise and fall times, and setup and hold times. Refer to the datasheet or manufacturer's documentation for precise timing specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S34ML04G200TFV000 Overview

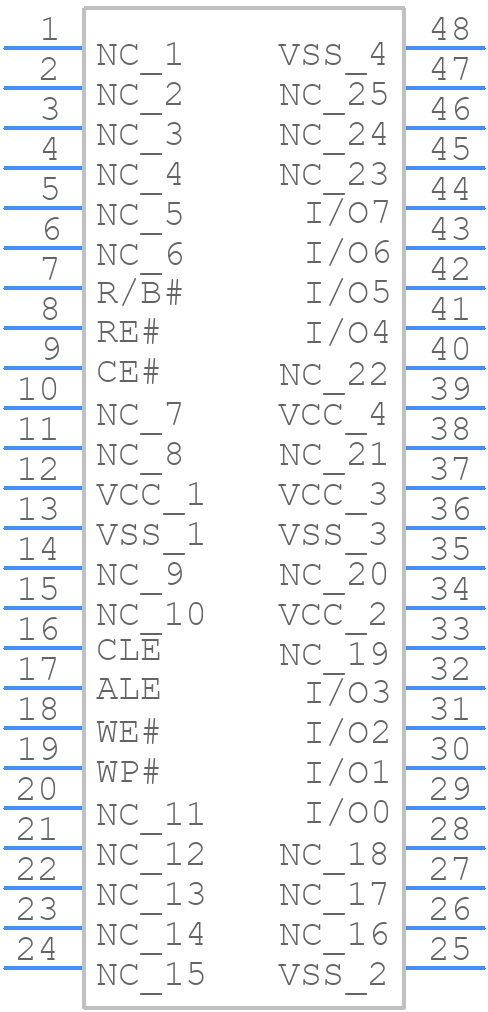

Use the download button to access the S34ML04G200TFV000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S34ML,
or try a keyword search, such as Flash Memories
