The maximum operating temperature range for the S34ML16G202TFI203 is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
To ensure data integrity, it's essential to follow the recommended power-down and power-up sequences outlined in the datasheet. Additionally, consider implementing a voltage supervisor or power-on reset circuit to ensure a clean power-up sequence. It's also recommended to use a capacitor to filter out any noise on the power supply lines.
The recommended clock frequency for the S34ML16G202TFI203 is up to 166 MHz, as specified in the datasheet. However, it's essential to consider the system's overall clock frequency, signal integrity, and noise tolerance when selecting the clock frequency.
The S34ML16G202TFI203 memory chip does not have built-in error correction or exception handling mechanisms. It's recommended to implement error detection and correction mechanisms, such as ECC (Error-Correcting Code) or CRC (Cyclic Redundancy Check), in the system's firmware or software to handle errors and exceptions during memory access.
The typical power consumption of the S34ML16G202TFI203 memory chip is around 350 mA during active operation, as specified in the datasheet. However, the actual power consumption may vary depending on the system's operating frequency, voltage, and usage patterns.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S34ML16G202TFI203 Overview

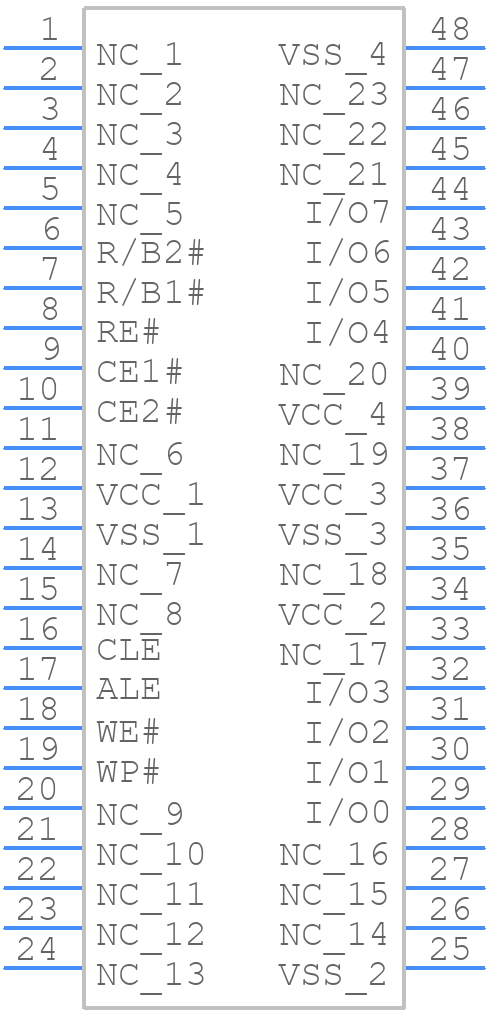

Use the download button to access the S34ML16G202TFI203 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S34ML,
or try a keyword search, such as Flash Memories
