S34MS04G200TFI000 - SkyHigh Memory

Description: IC FLASH 4G PARALLEL 48TSOP I

Download S34MS04G200TFI000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

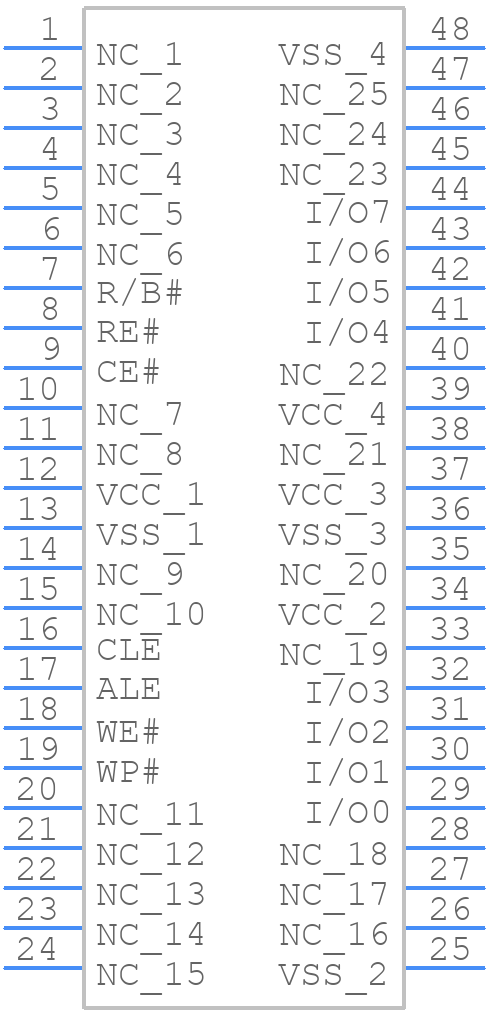

S34MS04G200TFI000 - SkyHigh Memory - PCB symbol
click to zoom
PCB Footprints

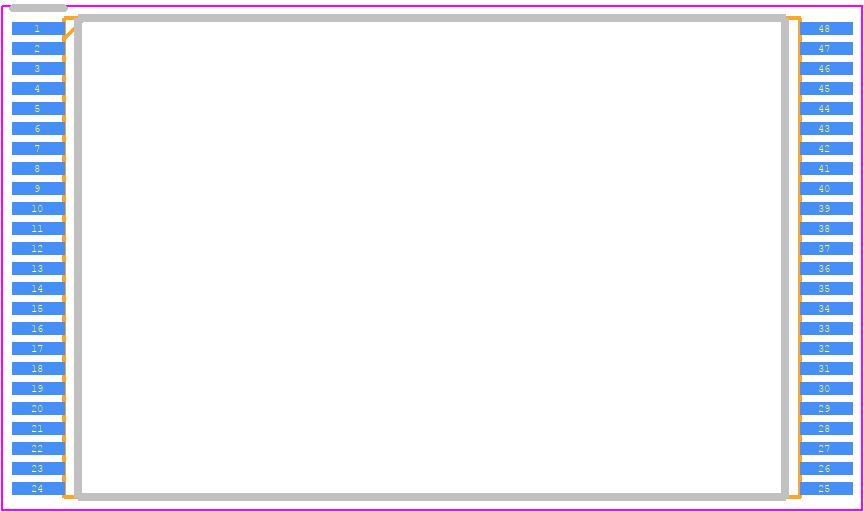

S34MS04G200TFI000 - SkyHigh Memory PCB footprint - Small Outline Packages - Small Outline Packages - TS/TSR 48 — 48-lead Plastic Thin Small Outline, 12 x 20 mm, Package Outline
click to zoom
3D Models
S34MS04G200TFI000 - SkyHigh Memory - 3D model - Small Outline Packages - TS/TSR 48 — 48-lead Plastic Thin Small Outline, 12 x 20 mm, Package Outline
click to zoom

S34MS04G200TFI000 Details

  • Manufacturer Part Number:

    S34MS04G200TFI000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    TSOP1-48

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    SkyHigh Memory Limited

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    536870912 words

  • Number of Words Code:

    512000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

S34MS04G200TFI000 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S34MS04G200TFI000 is 0°C to 85°C, as specified in the datasheet. However, it's recommended to operate within 0°C to 70°C for optimal performance and reliability.
  • The S34MS04G200TFI000 is designed to operate at 1.2V, and it's not recommended to use it with a different voltage supply. Using a different voltage may damage the module or affect its performance and reliability.
  • To ensure signal integrity and reduce noise, follow the recommended PCB layout guidelines, use proper termination, and ensure that the signal traces are properly shielded. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • The maximum current consumption of the S34MS04G200TFI000 is typically around 350mA during write operations and 250mA during read operations. However, this value may vary depending on the specific use case and system design.
  • The S34MS04G200TFI000 is designed to operate at a clock speed of 200MHz. While it may be possible to use it with a different clock speed, it's not recommended as it may affect the module's performance and reliability. Consult with the manufacturer or a qualified engineer to determine the feasibility of using the module with a different clock speed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S34MS04G200TFI000 Overview

Use the download button to access the S34MS04G200TFI000 schematic symbol, PCB footprint, and 3D model.
