The recommended PCB layout and thermal design can be found in the application note provided by Delta Electronics Inc. It's essential to follow the guidelines to ensure proper heat dissipation and minimize thermal resistance.
To ensure reliability, follow the recommended derating guidelines, use proper thermal management, and implement adequate input and output filtering. Additionally, consider using redundant or N+1 configurations for critical applications.
The S36SE12002PRFZ is designed to meet CISPR 22 Class B emissions standards. To minimize EMI concerns, use proper shielding, grounding, and filtering techniques, and ensure the converter is installed in a metal enclosure.
Yes, the S36SE12002PRFZ can be used in redundant or parallel configurations. However, it's essential to ensure proper synchronization, current sharing, and fault detection mechanisms are implemented to prevent instability or damage.
Store the S36SE12002PRFZ in a dry, cool environment, away from direct sunlight and moisture. Follow the recommended storage conditions and shelf-life guidelines provided by Delta Electronics Inc. to ensure the converter's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S36SE12002PRFZ Overview

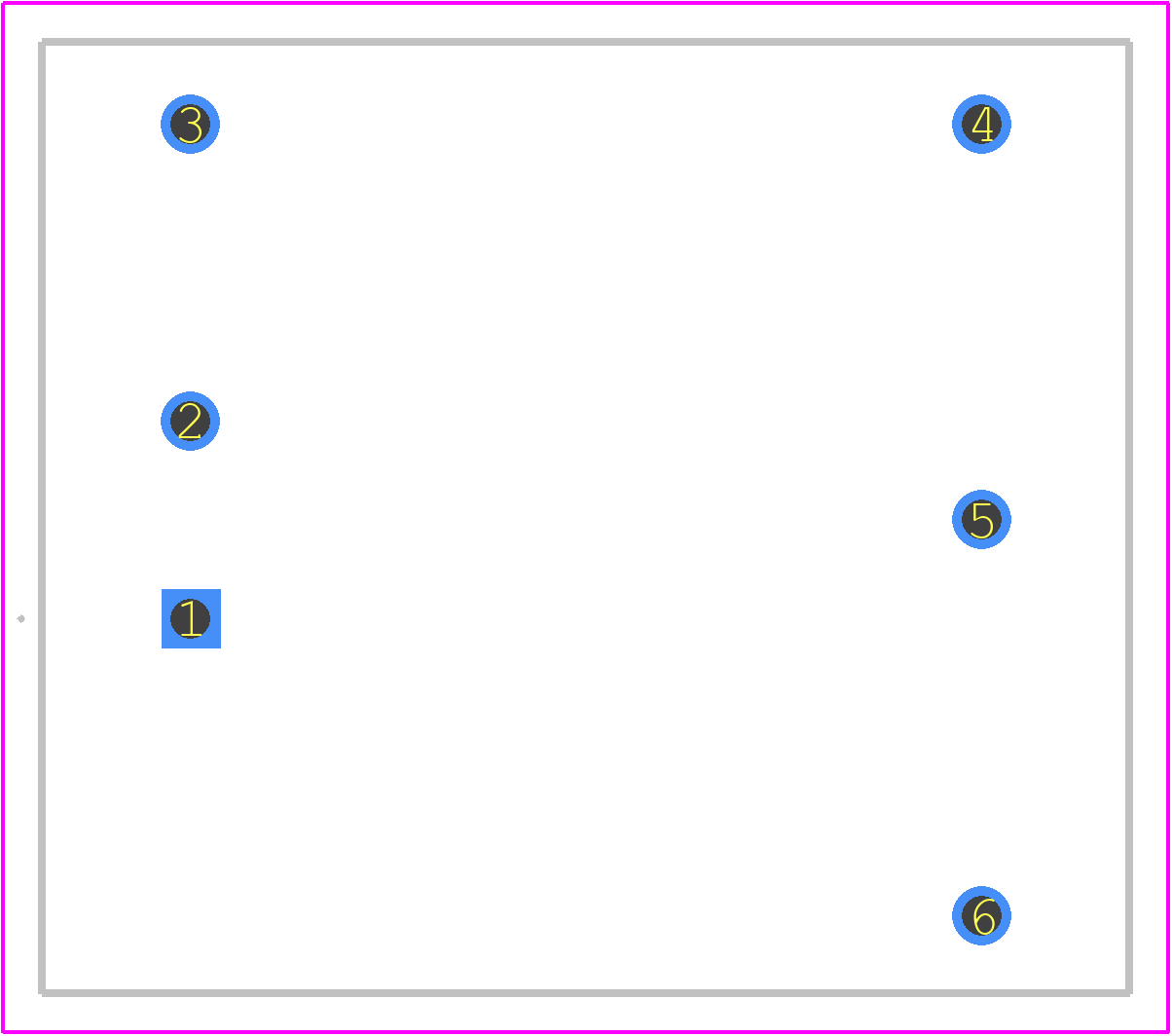

Use the download button to access the S36SE12002PRFZ schematic symbol, PCB footprint, and 3D model.
