A good PCB layout should ensure good thermal conductivity, minimal inductance, and minimal noise coupling. A thermal management strategy should include a heat sink, thermal interface material, and a well-designed airflow system.
Follow proper PCB layout guidelines, use shielding, and ensure proper grounding and decoupling. Also, consider using EMI filters and common-mode chokes to reduce emissions.
Derating curves are typically provided by the manufacturer or can be calculated based on the device's thermal characteristics. Apply derating by reducing the maximum current or voltage ratings based on the operating temperature and other environmental factors.
Choose capacitors with suitable voltage ratings, capacitance values, and ESR (equivalent series resistance) based on the device's requirements and operating conditions. Consider factors like ripple current, temperature, and lifespan.
Reliability and MTBF expectations can be obtained from the manufacturer's datasheet or reliability reports. These values are typically based on accelerated life testing and can be used to estimate the device's lifespan in a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S36SE3R305NRFB Overview

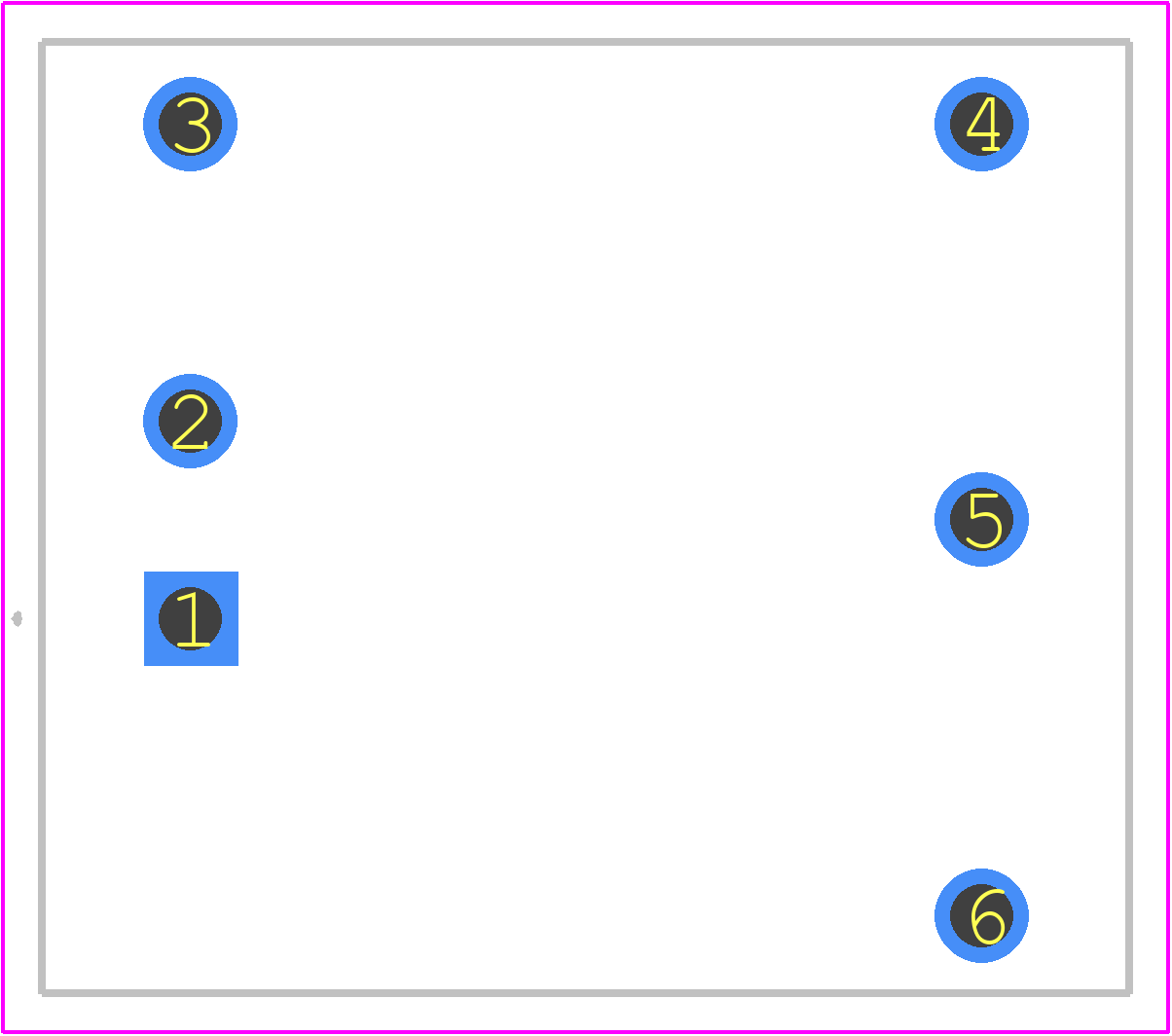

Use the download button to access the S36SE3R305NRFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S36SE,
or try a keyword search, such as Power Supply Modules
