S3EB-12V - Panasonic

Description: 2 Form A 2 Form B/3 Form A 1 Form B/4 Form A /4 A Polarized power relays

Download S3EB-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

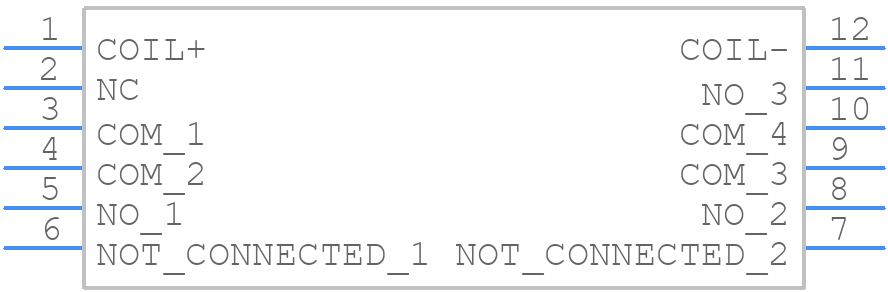

Symbol
S3EB-12V - Panasonic - PCB symbol
click to zoom

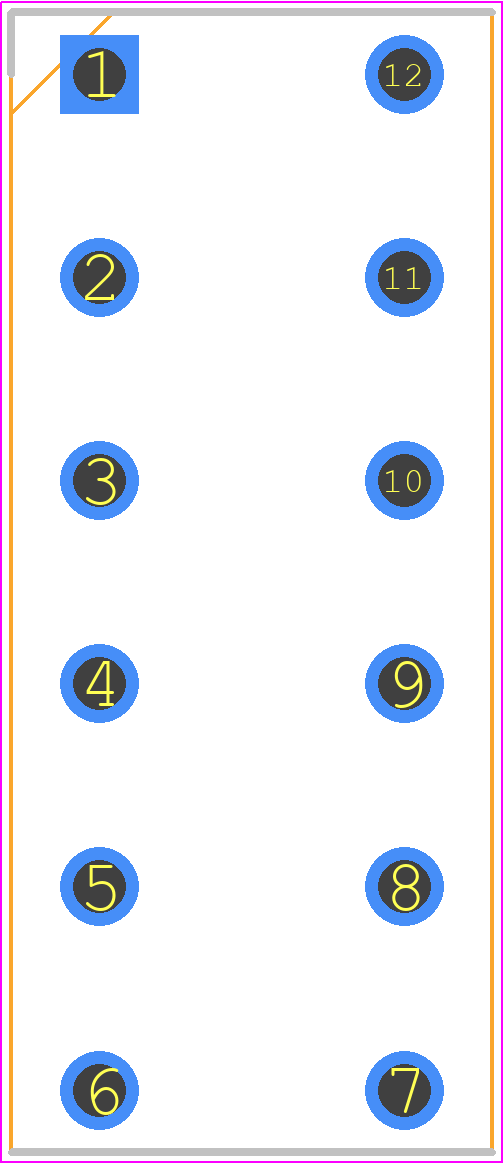

PCB Footprints
S3EB-12V - Panasonic PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - S3EB-12V
click to zoom
3D Models
S3EB-12V - Panasonic - 3D model - Dual-In-Line Sockets - S3EB-12V
click to zoom

S3EB-12V Details

  • Manufacturer Part Number:

    S3EB-12V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    12 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    28 mm

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    21.6 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    4A@250VAC

  • Contact Current(AC)-Max:

    4 A

  • Contact Current(DC)-Max:

    3 A

  • Contact (DC) Max Rating R Load:

    3A@48VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    48 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    SILVER NICKEL/SILVER TIN OXIDE

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    12

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    28mm x 12mm x 10mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    3 FORM A,1 FORM B

  • Relay Function:

    4PST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003987807975615951 inch

  • Termination Type:

    SOLDER

S3EB-12V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the S3EB-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The S3EB-12V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers for specific guidance on using the relay in high-temperature environments.
  • Panasonic provides a recommended PCB layout and spacing guideline in the relay's datasheet. However, it's recommended to consult with Panasonic's application engineers for specific guidance on PCB design and layout to ensure optimal performance and reliability.
  • The S3EB-12V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, the relay's performance and lifespan may be affected in extreme vibration environments. It's recommended to consult with Panasonic's application engineers for specific guidance on using the relay in high-vibration environments.
  • Panasonic provides a recommended derating curve for the S3EB-12V relay in the datasheet. However, it's recommended to consult with Panasonic's application engineers for specific guidance on derating the relay for your specific application.
