The maximum switching frequency of the S4-DC12V relay is 20 Hz. However, it's recommended to limit the switching frequency to 10 Hz or less to ensure reliable operation and extend the relay's lifespan.
The S4-DC12V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and switching frequency at high temperatures to ensure reliable operation.
To ensure the relay's contacts are clean and free of contamination, it's recommended to handle the relay by the case rather than the leads, avoid touching the contacts, and store the relay in a clean, dry environment. If contamination is suspected, clean the contacts with a soft brush and a mild solvent.
The recommended PCB layout and spacing for the S4-DC12V relay can be found in the Panasonic application note 'Relay Mounting and PCB Layout Guidelines'. In general, it's recommended to provide a minimum of 1.5 mm clearance around the relay and to use a ground plane to reduce electromagnetic interference.
The S4-DC12V relay is not designed for use in safety-critical applications. If you need a relay for a safety-critical application, consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S4-DC12V Overview

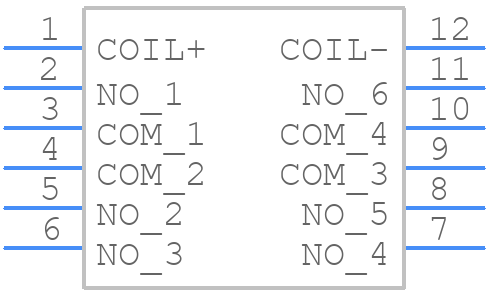

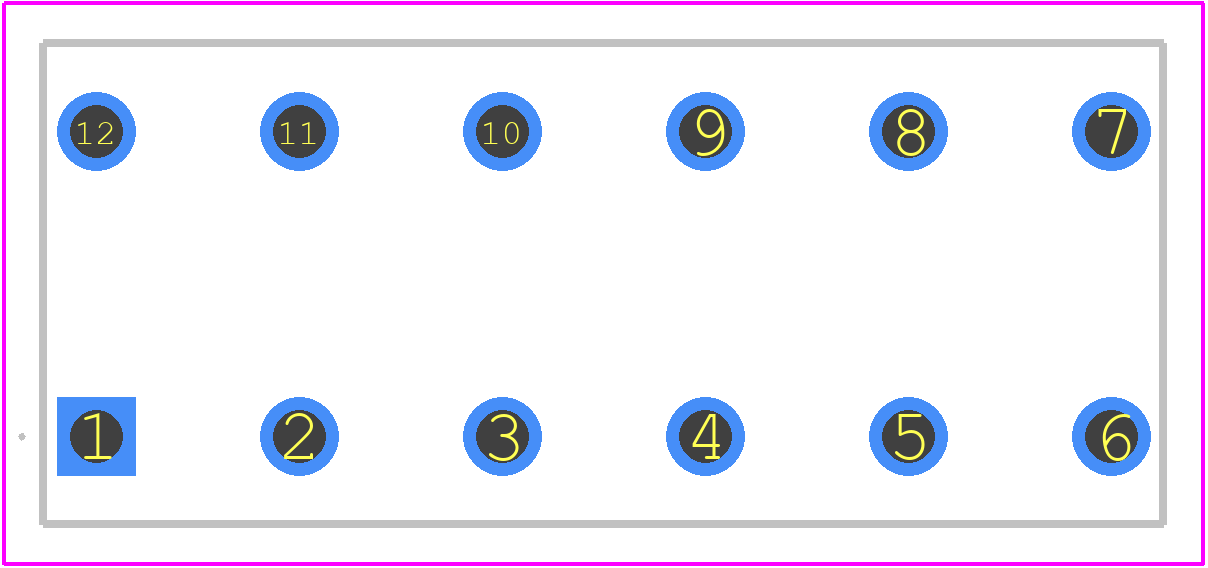

Use the download button to access the S4-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S4-DC,
or try a keyword search, such as Power/Signal Relays
