S4040NQ2RP - LITTELFUSE

Description: SCRs 400V 40A SCR Low TQ TO263 Teccor brand Thyristors 40 Amp Low Tq SCR

Download S4040NQ2RP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

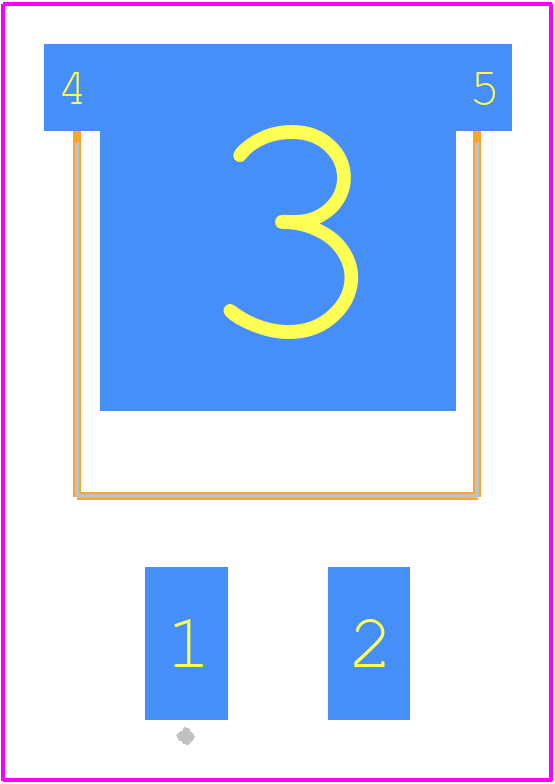

S4040NQ2RP - LITTELFUSE PCB footprint - Other - Other - TO-263 (N Package)
click to zoom
3D Models
S4040NQ2RP - LITTELFUSE  - 3D model - Other - TO-263 (N Package)
click to zoom

S4040NQ2RP Details

  • Manufacturer Part Number:

    S4040NQ2RP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    SCR

S4040NQ2RP Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the S4040NQ2RP is a pad layout with a minimum size of 1.5mm x 0.8mm, with a 0.5mm spacing between pads. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
  • While the S4040NQ2RP has a maximum operating temperature of 150°C, it's not recommended to use it in extreme high-temperature environments (above 125°C) for extended periods. Prolonged exposure to high temperatures can affect the device's reliability and lifespan. If you need a high-temperature solution, consider using a thermally enhanced package or a different device specifically designed for high-temperature applications.
  • To ensure proper soldering, follow the recommended soldering profile: peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Use a solder with a melting point of 217°C or higher, and apply a flux to the pads before soldering. Avoid using excessive solder or applying excessive force, which can damage the device.
  • Store the S4040NQ2RP in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less. Avoid storing the devices in close proximity to sources of electromagnetic radiation or strong magnetic fields.
  • The S4040NQ2RP is designed to withstand moderate vibration levels. However, if your application involves extreme vibration (above 10G), consider using a device with enhanced mechanical robustness or taking additional measures to secure the device to the PCB. Consult with a mechanical engineer or a reliability expert to ensure the device can withstand the expected vibration levels.
