S40FC004C1B1C00000 - SkyHigh Memory

Description: eMMC ,,

Download S40FC004C1B1C00000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

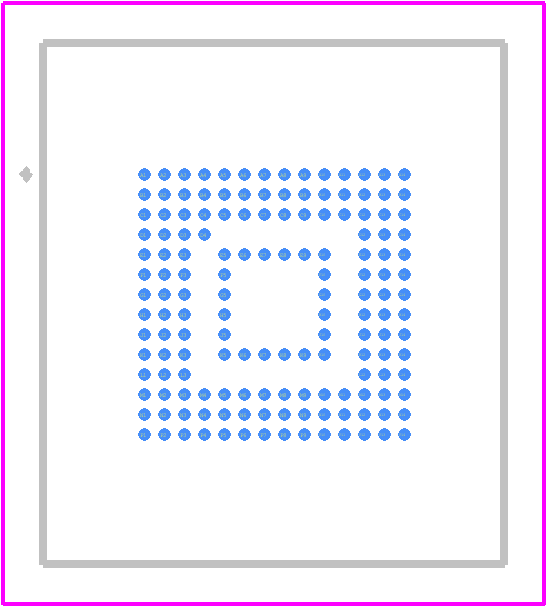

S40FC004C1B1C00000 - SkyHigh Memory PCB footprint - Other - Other - VFBGA 153
click to zoom
3D Models
S40FC004C1B1C00000 - SkyHigh Memory  - 3D model - Other - VFBGA 153
click to zoom

S40FC004C1B1C00000 Details

  • Manufacturer Part Number:

    S40FC004C1B1C00000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FBGA-153

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2020-03-11

  • Manufacturer:

    SkyHigh Memory Limited

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    34359738368 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    4294967296 words

  • Number of Words Code:

    4000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Organization:

    4GX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    EMMC 5.1

  • Standby Current-Max:

    0.00025 A

  • Supply Current-Max:

    0.11 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    MLC NAND TYPE

  • Width:

    11.5 mm

  • Write Protection:

    SOFTWARE
