S40FC008C3B1I00300 - SkyHigh Memory

S40FC008C3B1I00300 Details

• Manufacturer Part Number:

  S40FC008C3B1I00300

• Part Life Cycle Code:

  Contact Manufacturer

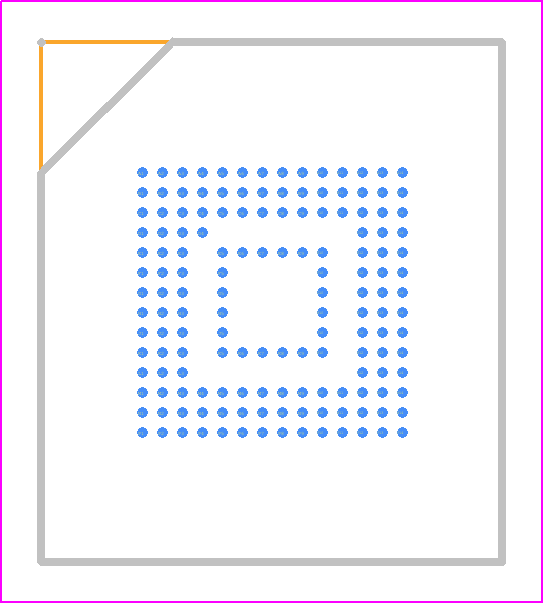

• Package Description:

  FBGA-153

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  SkyHigh Memory Limited

• Clock Frequency-Max (fCLK):

  200 MHz

• JESD-30 Code:

  R-PBGA-B153

• Length:

  13 mm

• Memory Density:

  68719476736 bit

• Memory IC Type:

  eMMC

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  153

• Number of Words:

  8589934592 words

• Number of Words Code:

  8000000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8GX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA153,14X14,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  3.3 V

• Seated Height-Max:

  0.8 mm

• Serial Bus Type:

  EMMC 5.1

• Standby Current-Max:

  0.00011 A

• Supply Current-Max:

  0.08 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Type:

  MLC NAND TYPE

• Width:

  11.5 mm

• Write Protection:

  SOFTWARE
