The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
Yes, the S471K29Y5PP63K5R is a Class II ceramic capacitor, which makes it suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and inductance.
The S471K29Y5PP63K5R has a rated voltage of 50 VDC, so it's not suitable for high-voltage applications above 50 V. However, Vishay offers other capacitors with higher voltage ratings, such as the S471K29Y5PP63K5R-H, which has a rated voltage of 100 VDC.
The S471K29Y5PP63K5R has a temperature rating of -55°C to +125°C, and its capacitance value decreases by approximately 2% per decade of temperature increase above 25°C. It's essential to consider the temperature coefficient when designing with this capacitor.
Yes, the S471K29Y5PP63K5R capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S471K29Y5PP63K5R Overview

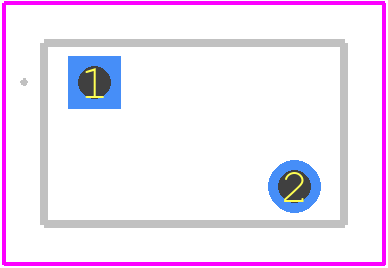

Use the download button to access the S471K29Y5PP63K5R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S471K,
or try a keyword search, such as Ceramic Capacitors
