S4EB-5V - Panasonic

S4EB-5V Details

• Manufacturer Part Number:

  S4EB-5V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8

• Body Breadth:

  12 mm

• Body Height:

  10 mm

• Body Length or Diameter:

  28 mm

• Coil Current(DC)-Max:

  0.039 A

• Coil Operate Voltage(DC):

  3.5 V

• Coil Power:

  192 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  130 Ω

• Coil Voltage(DC)-Max:

  9 V

• Coil Voltage-Nom:

  5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  4A@250VAC

• Contact Current(AC)-Max:

  4 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Rating R Load:

  3A@48VDC

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  48 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER NICKEL/SILVER TIN OXIDE

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

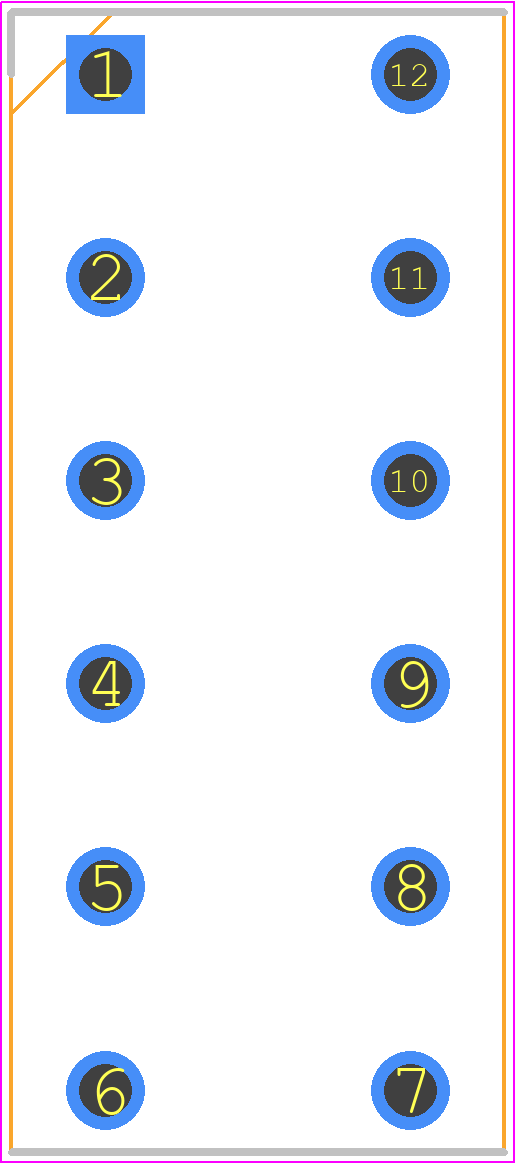

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  12

• Operate Time:

  15 ms

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  BOX

• Physical Dimension:

  28mm x 12mm x 10mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

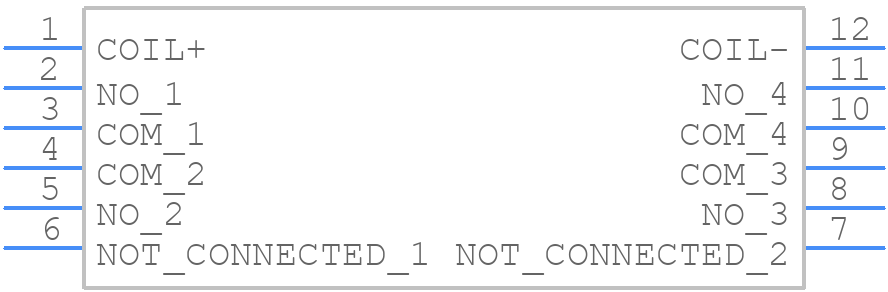

• Relay Form:

  4 FORM A

• Relay Function:

  4PST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003987807975615951 inch

• Termination Type:

  SOLDER
