S4EB-L-12V footprint, schematic symbol and 3D model by Panasonic

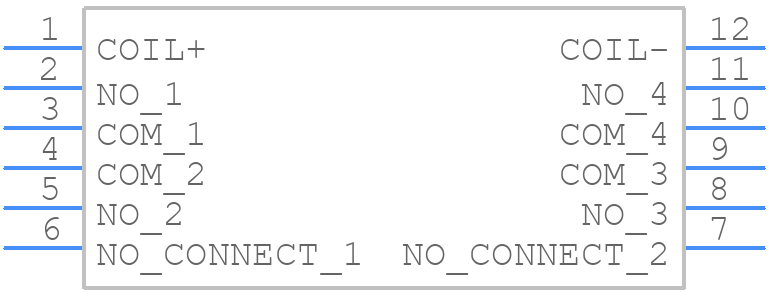

Symbol

click to zoom

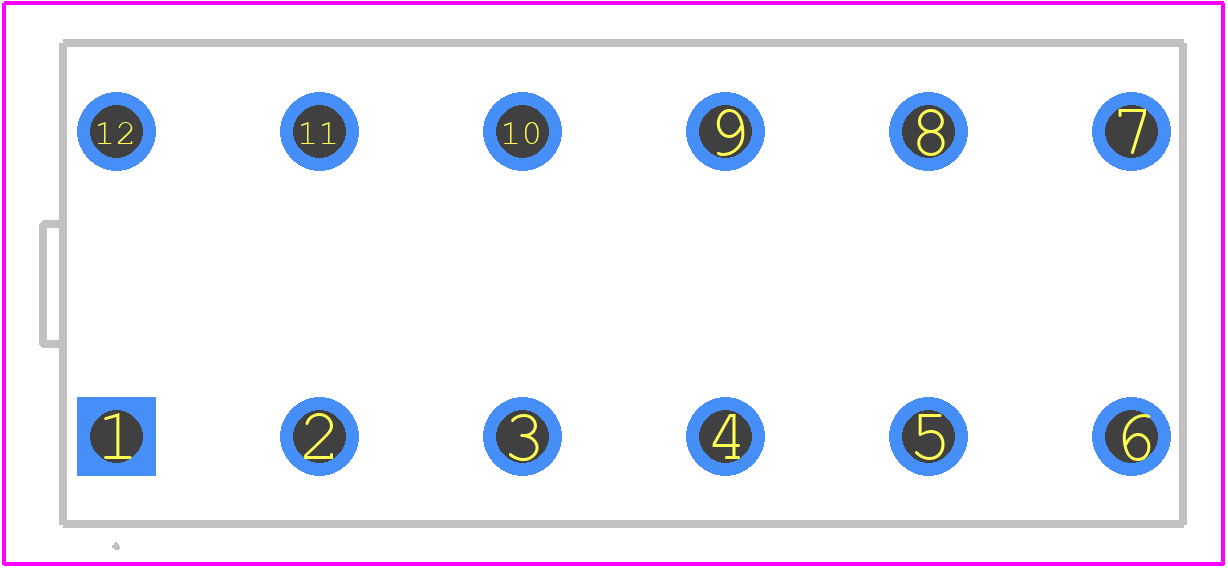

PCB Footprints

S4EB-L-12V - Panasonic PCB footprint - Other - Other - S4EB-L-12V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for S4EB-L-12V
Part Number S4EB-L-12V
Manufacturer Panasonic
Pin Count 12
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - S4EB-L-12V-1
Released Date Jan 7, 2025
Last Modified Date Dec 3, 2025 8:34 PM UTC
Pinout / Pin List Click Here (Member Only)

S4EB-L-12V Details

Manufacturer Part Number:
S4EB-L-12V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
24 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Additional Feature:
SOCKET MOUNTABLE
Body Breadth:
12 mm
Body Height:
10 mm
Body Length or Diameter:
28 mm
Coil Voltage(DC)-Max:
12 V
Contact (AC) Max Rating R Load:
4A@250VAC
Contact Current(AC)-Max:
4 A
Contact Current(DC)-Max:
3 A
Contact (DC) Max Rating R Load:
3A@48VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
48 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
15 ms
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-55 °C
Physical Dimension:
28mm x 12mm x 10mm
Reference Standard:
CSA; UL
Relay Action:
LATCHED
Relay Function:
4PST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

S4EB-L-12V Frequently Asked Questions (FAQs)

The maximum switching frequency of the S4EB-L-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The S4EB-L-12V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
The S4EB-L-12V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

S4EB-L-12V Overview

Use the download button to access the S4EB-L-12V schematic symbol and PCB footprint.
