S4EB-L2-24V footprint, schematic symbol and 3D model by Panasonic

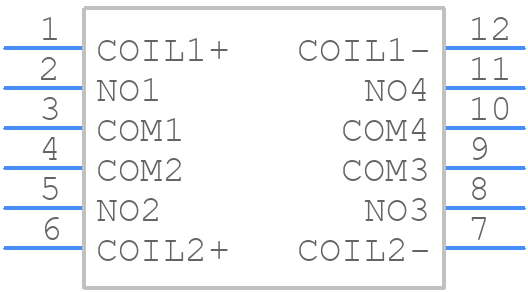

Symbol

click to zoom

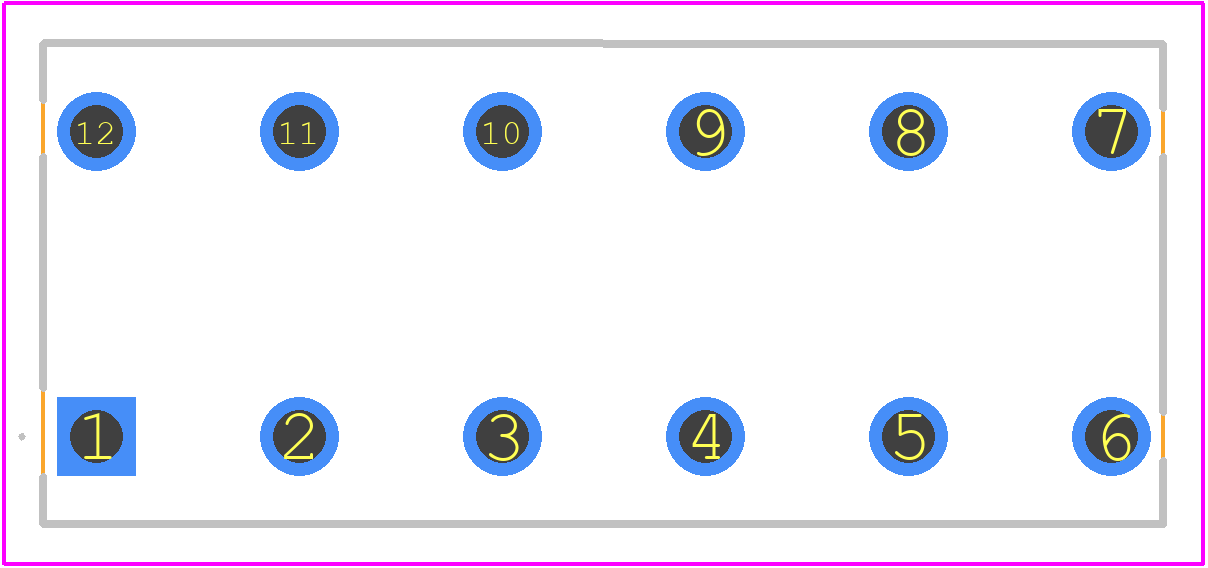

PCB Footprints

S4EB-L2-24V - Panasonic PCB footprint - Other - Other - AG324460

click to zoom

3D Models

S4EB-L2-24V - Panasonic - 3D model - Other - AG324460

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for S4EB-L2-24V
Part Number S4EB-L2-24V
Manufacturer Panasonic
Pin Count 12
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG324460
Released Date Jan 21, 2026
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

S4EB-L2-24V Details

Manufacturer Part Number:
S4EB-L2-24V
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
17 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
8
Body Breadth:
12 mm
Body Height:
10 mm
Body Length or Diameter:
28 mm
Coil Current(DC)-Max:
0.008 A
Coil Operate Voltage(DC):
16.8 V
Coil Power:
202 mW
Coil Release Voltage(DC):
16.8 V
Coil Resistance:
2850 Ω
Coil Voltage(DC)-Max:
43.2 V
Coil Voltage-Nom:
24 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
4A@250VAC
Contact Current(AC)-Max:
4 A
Contact Current(DC)-Max:
3 A
Contact (DC) Max Rating R Load:
3A@48VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
48 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
End Contact Material:
SILVER NICKEL/SILVER TIN OXIDE
End Contact Plating:
GOLD
Input Switching Control Type:
Random
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
12
Operate Time:
15 ms
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-55 °C
Packing Method:
BOX
Physical Dimension:
28mm x 12mm x 10mm
Reference Standard:
CSA; UL
Relay Action:
LATCHED
Relay Form:
4 FORM A
Relay Function:
4PST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Terminal Length:
0.003987807975615951 inch
Termination Type:
SOLDER

S4EB-L2-24V Frequently Asked Questions (FAQs)

The maximum switching frequency of the S4EB-L2-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The S4EB-L2-24V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
The recommended PCB layout and trace width for the S4EB-L2-24V relay can be found in Panasonic's application notes and PCB layout guidelines. Generally, a minimum trace width of 1.5 mm and a spacing of 1.5 mm between the relay and other components are recommended.
The S4EB-L2-24V relay is designed to withstand vibrations up to 10 G. However, it's recommended to consult with Panasonic's application engineers to determine the suitable vibration resistance for your specific application.
The recommended soldering profile for the S4EB-L2-24V relay is a peak temperature of 260°C for 10 seconds. However, it's recommended to consult with Panasonic's application engineers and follow the soldering guidelines in the datasheet to ensure reliable solder joints.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

S4EB-L2-24V Overview

Use the download button to access the S4EB-L2-24V schematic symbol, PCB footprint, and 3D model.
