Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal performance, reduce thermal resistance, and prevent overheating.
The selection of input and output capacitors depends on the specific application, output voltage, and current requirements. Bel Fuse recommends using low-ESR capacitors with a voltage rating higher than the maximum output voltage. A minimum capacitance value of 10uF is recommended for the output capacitor.
The S558-5500-JV has an operating temperature range of -40°C to +85°C, with a derating of 1.5% per °C above 60°C. It's essential to ensure the device operates within this range to maintain its performance and reliability.
The S558-5500-JV meets various safety and regulatory standards, including UL, cUL, and CE. However, it's essential to ensure that the entire system design meets the required standards. Bel Fuse provides guidance on safety and regulatory considerations in their application notes and design guides.
The typical efficiency of the S558-5500-JV is around 85-90%. This efficiency affects the system design, as it impacts the power loss, heat generation, and overall system reliability. Engineers should consider the efficiency when selecting components, designing the thermal management system, and ensuring the overall system reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S558-5500-JV Overview

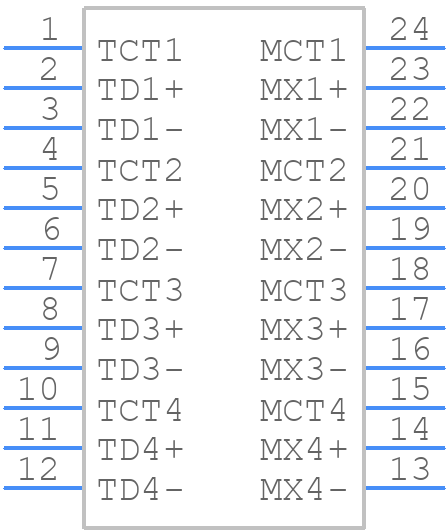

Use the download button to access the S558-5500-JV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S558-,
or try a keyword search, such as Pulse/Datacom Transformers
