Bel Fuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The S558-5999-AT-F is designed to provide excellent high-frequency noise attenuation and EMI filtering. However, the effectiveness of noise reduction depends on the specific application, PCB layout, and system design. Engineers should consider additional noise reduction techniques, such as shielding and grounding, to ensure optimal performance.
While the datasheet provides a recommended operating temperature range, engineers should note that the maximum operating temperature range for the S558-5999-AT-F is -40°C to 125°C. However, it's essential to consider derating and thermal management to ensure reliable operation.
The S558-5999-AT-F is a high-reliability component, but engineers should evaluate its suitability for safety-critical applications. Bel Fuse provides additional documentation and support for high-reliability applications, including failure rate data and environmental testing reports.
To prevent damage and ensure reliability, engineers should follow Bel Fuse's recommended storage and handling procedures, including proper packaging, humidity control, and electrostatic discharge (ESD) protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S558-5999-AT-F Overview

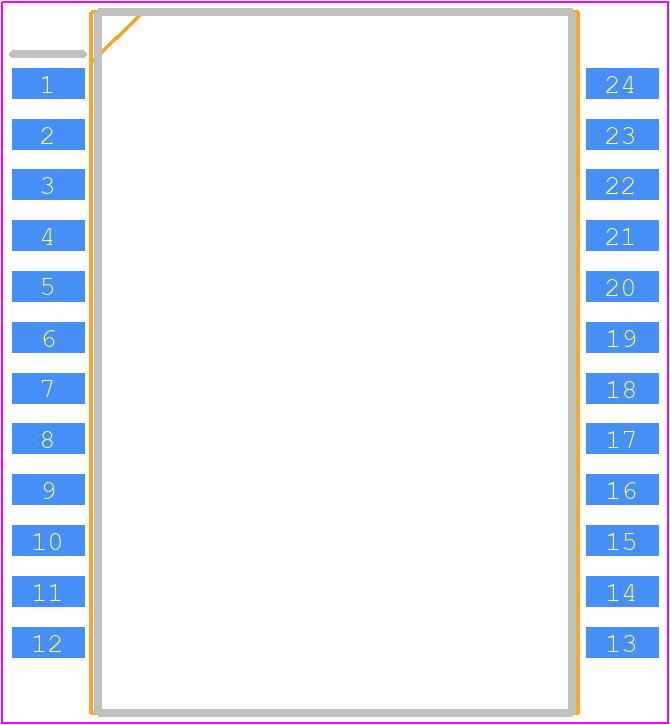

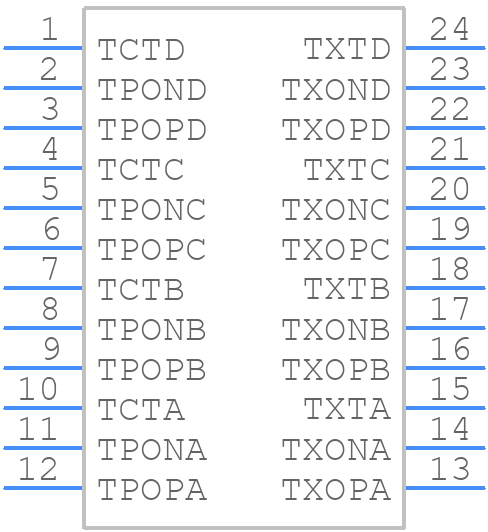

Use the download button to access the S558-5999-AT-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S558-,
or try a keyword search, such as Pulse/Datacom Transformers
