S5629 - Hamamatsu

Description: Dual Photodiode Com.C 760-1100nm SMD Hamamatsu S5629 IR Photodiode, Surface Mount SMD

Download S5629 Model

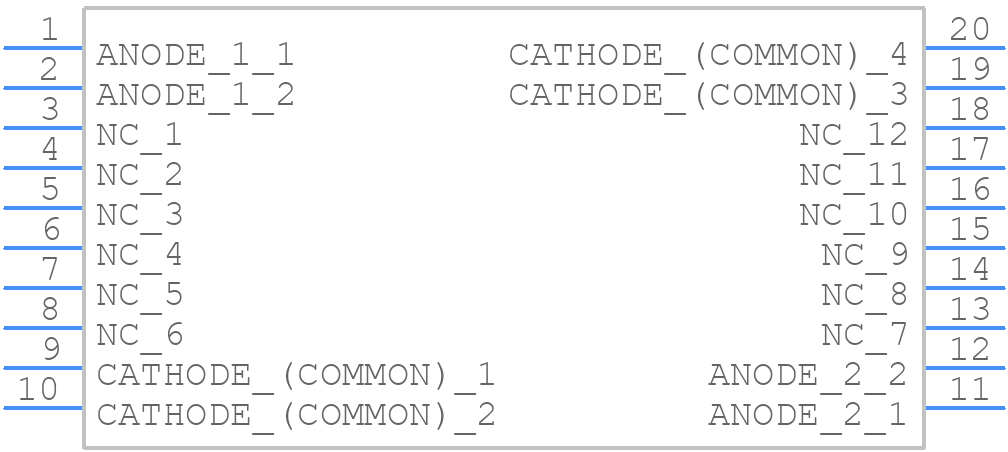

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S5629 - Hamamatsu PCB footprint - Small Outline Packages - Small Outline Packages - S5629
click to zoom
3D Models
S5629 - Hamamatsu  - 3D model - Small Outline Packages - S5629
click to zoom

S5629 Details

  • Manufacturer Part Number:

    S5629

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MINIATURE, PLASTIC PACKAGE-20

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Hamamatsu Photonics

  • YTEOL:

    0

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Dark Current-Max:

    2 nA

  • Infrared Range:

    YES

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Peak Wavelength:

    960 nm

  • Reverse Breakdown Voltage-Min:

    20 V

  • Shape:

    RECTANGULAR

  • Size:

    6 mm

S5629 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the S5629 is -20°C to 70°C. However, it can operate up to 85°C with reduced performance.
  • Handle the S5629 by the ceramic package only, avoiding touching the optical surface or the wire bonds. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The recommended reverse voltage for the S5629 is up to 20V. However, it can withstand up to 30V with reduced performance and increased dark current.
  • Store the S5629 in a dry, dark place at room temperature (20°C to 30°C) with a relative humidity of 60% or less. Avoid exposing it to direct sunlight, moisture, or extreme temperatures.
  • The S5629 is not designed for high-radiation environments. It may experience degradation or damage from radiation exposure. Consult Hamamatsu Photonics for radiation-hardened alternatives.
