A good PCB layout for the S5DC-13-F involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure the S5DC-13-F operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range (4.5V to 18V), the output current is within the maximum rating (1A), and the junction temperature is below the maximum rating (125°C).
A 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) is recommended between the VIN and GND pins to filter out noise and ensure stable operation.
The S5DC-13-F is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermal management system to keep the junction temperature below 125°C.
Use a voltage regulator or a voltage supervisor IC to regulate the input voltage and protect the S5DC-13-F from overvoltage and undervoltage conditions. You can also add a TVS diode or a zener diode to clamp the input voltage and prevent damage from voltage spikes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S5DC-13-F Overview

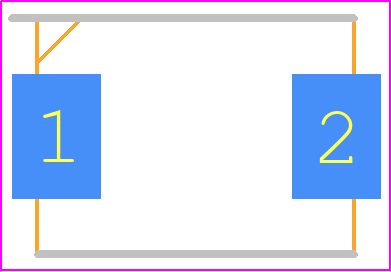

Use the download button to access the S5DC-13-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S5DC-,
or try a keyword search, such as Rectifier Diodes
