The recommended operating temperature range for the S6J336CJTBSE20000 is -40°C to 125°C, as specified in the datasheet.
The clock settings for the S6J336CJTBSE20000 can be configured using the Clock Controller (CLK) module. Refer to the datasheet and the Infineon XMC™ Peripheral Library documentation for more information.
The maximum current consumption of the S6J336CJTBSE20000 depends on the operating mode and frequency. According to the datasheet, the maximum current consumption is approximately 150 mA at 200 MHz with all peripherals enabled.
The S6J336CJTBSE20000 supports secure boot through the BootROM and the Secure Boot Loader (SBL). Refer to the Infineon XMC™ Secure Boot documentation and the datasheet for more information on implementing secure boot.
The S6J336CJTBSE20000 features a range of communication interfaces, including UART, SPI, I2C, I2S, USB, CAN, and Ethernet. Refer to the datasheet for more information on each interface.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S6J336CJTBSE20000 Overview

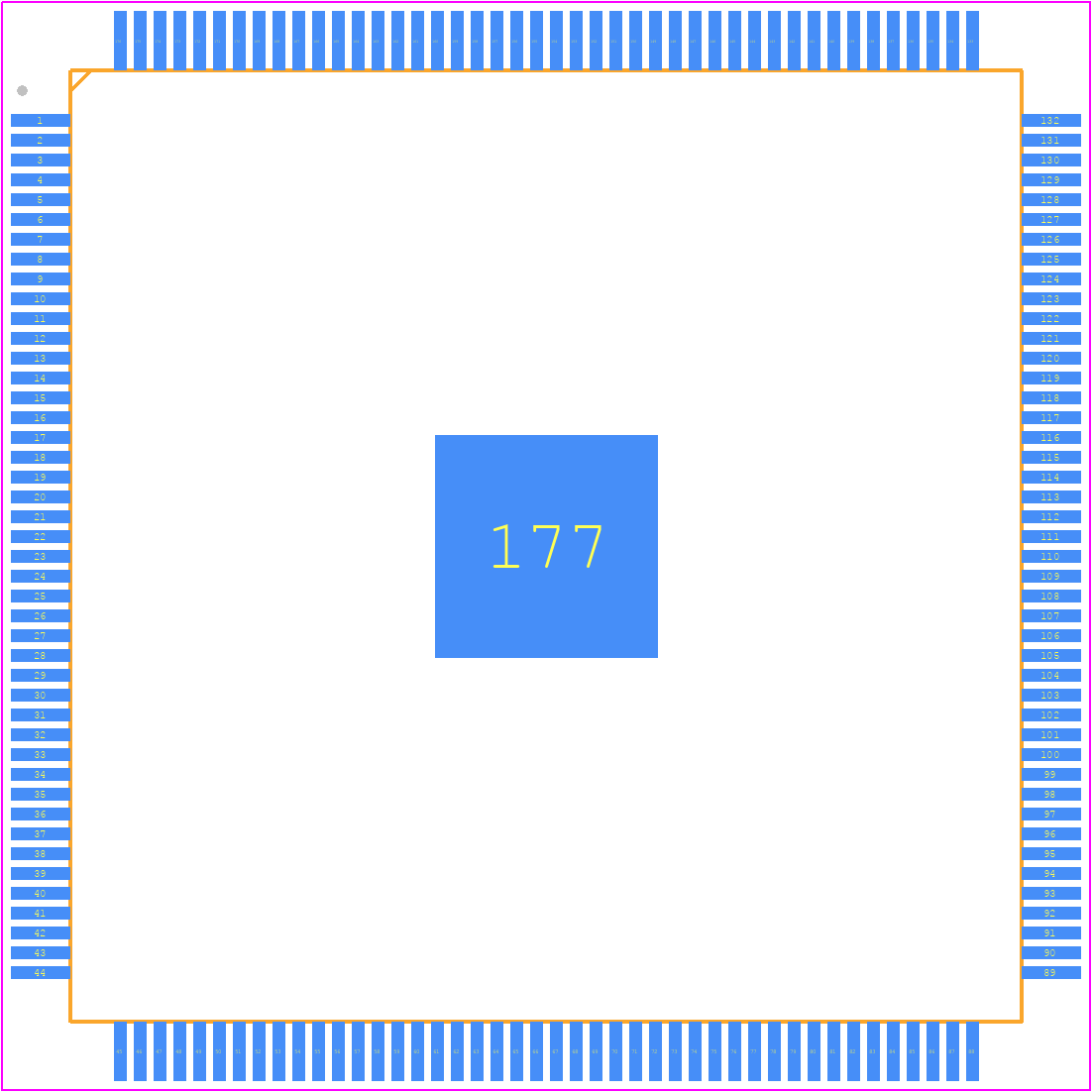

Use the download button to access the S6J336CJTBSE20000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S6J33,
or try a keyword search, such as Microcontrollers
