A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a reference layout, but it's essential to consult with a PCB design expert to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system.
The input and output capacitors should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. A minimum of 10uF ceramic capacitors with a voltage rating of 10V or higher is recommended for the input and output.
The power-up and power-down sequencing should be handled carefully to avoid damage to the device. A soft-start circuit can be used to control the power-up sequence, and a power-down sequence should be implemented to ensure a controlled shutdown.
The PCB footprint and land pattern should be designed according to the datasheet recommendations, taking into account the device's pinout, package dimensions, and thermal considerations. A minimum of 0.5mm clearance around the device is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S70FL01GSAGBHIC10 Overview

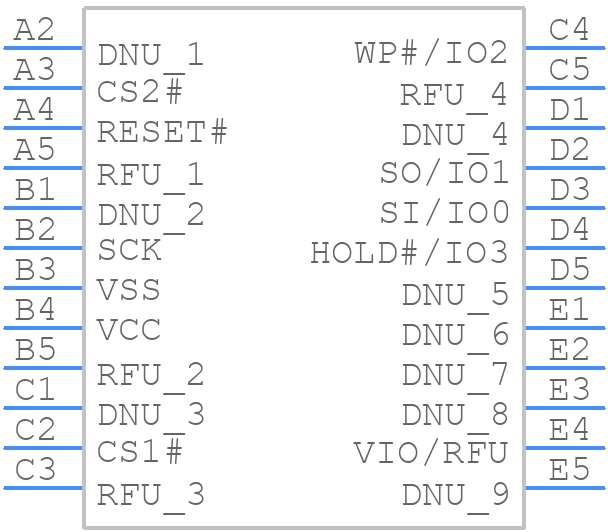

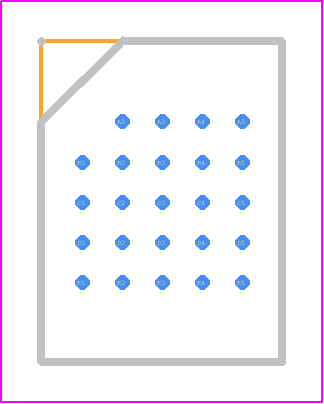

Use the download button to access the S70FL01GSAGBHIC10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S70FL,
or try a keyword search, such as Flash Memories
