S70FL01GSDPMFI010 - Infineon

Description: Flash Memory Nor

Download S70FL01GSDPMFI010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

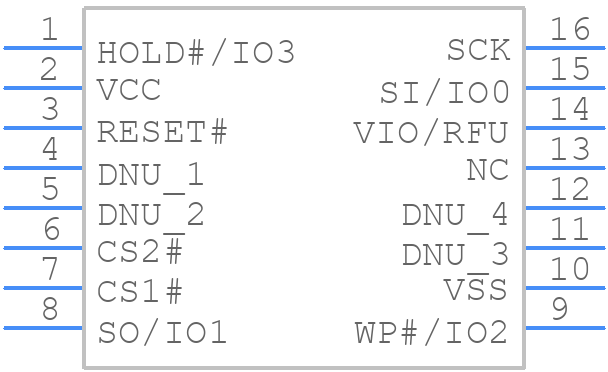

S70FL01GSDPMFI010 - Infineon - PCB symbol
click to zoom
PCB Footprints
S70FL01GSDPMFI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom
3D Models
S70FL01GSDPMFI010 - Infineon - 3D model - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom

S70FL01GSDPMFI010 Details

  • Manufacturer Part Number:

    S70FL01GSDPMFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    66 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.0002 A

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S70FL01GSDPMFI010 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout guide in their application note AN2013-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The S70FL01GSDPMFI010 has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the device's thermal resistance (RthJA) is specified in the datasheet, and a thermal analysis should be performed to ensure the device operates within its recommended temperature range.
  • The S70FL01GSDPMFI010 requires a single 3.3V power supply with a recommended operating range of 3.0V to 3.6V. The power supply should be decoupled with a 10uF capacitor and a 1uF capacitor in parallel to ensure stable operation. Additionally, the power supply should be able to provide a minimum of 100mA of current to support the device's operating current.
  • The S70FL01GSDPMFI010 has built-in ESD protection, but additional external protection may be required depending on the application. Infineon recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the device from electrostatic discharge.
  • The S70FL01GSDPMFI010 requires a clock signal with a frequency range of 100MHz to 200MHz. The clock signal should have a duty cycle of 50% and a rise/fall time of less than 1ns. Additionally, the clock signal should be decoupled with a 10pF capacitor to ensure stable operation.
