Part Image

S9S12D64F0VFUE - NXP

Description: IC MCU

Download S9S12D64F0VFUE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

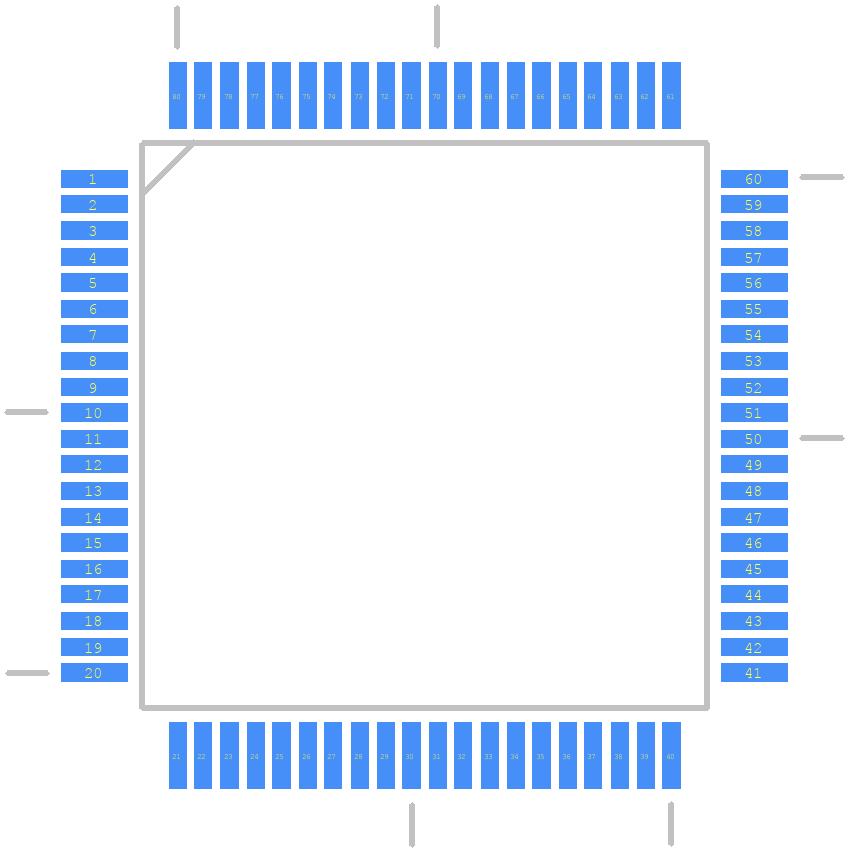

S9S12D64F0VFUE - NXP PCB footprint - Other - Other - QFP65P1720X1720X245-80N
click to zoom
3D Models
S9S12D64F0VFUE - NXP  - 3D model - Other - QFP65P1720X1720X245-80N
click to zoom

S9S12D64F0VFUE Details

  • Manufacturer Part Number:

    S9S12D64F0VFUE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HQFP-80

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    NO

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    S9S12

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    14 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    80

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQFP

  • Package Equivalence Code:

    HQFP80,.67SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Speed:

    25 MHz

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

S9S12D64F0VFUE Frequently Asked Questions (FAQs)

  • The S9S12D64F0VFUE can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 105°C.
  • The clock settings can be configured using the Clock Generation Module (CGM) registers. The CGM module allows you to select the clock source, divide the clock frequency, and enable/disable the clock outputs. Refer to the device's reference manual for more information.
  • The maximum current that can be sourced by the GPIO pins is 20mA, and the maximum current that can be sunk is 25mA. However, it's recommended to limit the current to 10mA per pin to ensure reliable operation.
  • The S9S12D64F0VFUE has a built-in Computer Operating Properly (COP) module that can be used as a watchdog timer. The COP module can be configured to generate a reset signal if the microcontroller fails to refresh the COP timer within a specified time period.
  • The minimum voltage required for the S9S12D64F0VFUE to operate is 2.7V, but it's recommended to operate the device at a voltage of 3.0V or higher for reliable operation.
