S9S12DG12F1MPVE - NXP

Description: IC MCU

Download S9S12DG12F1MPVE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

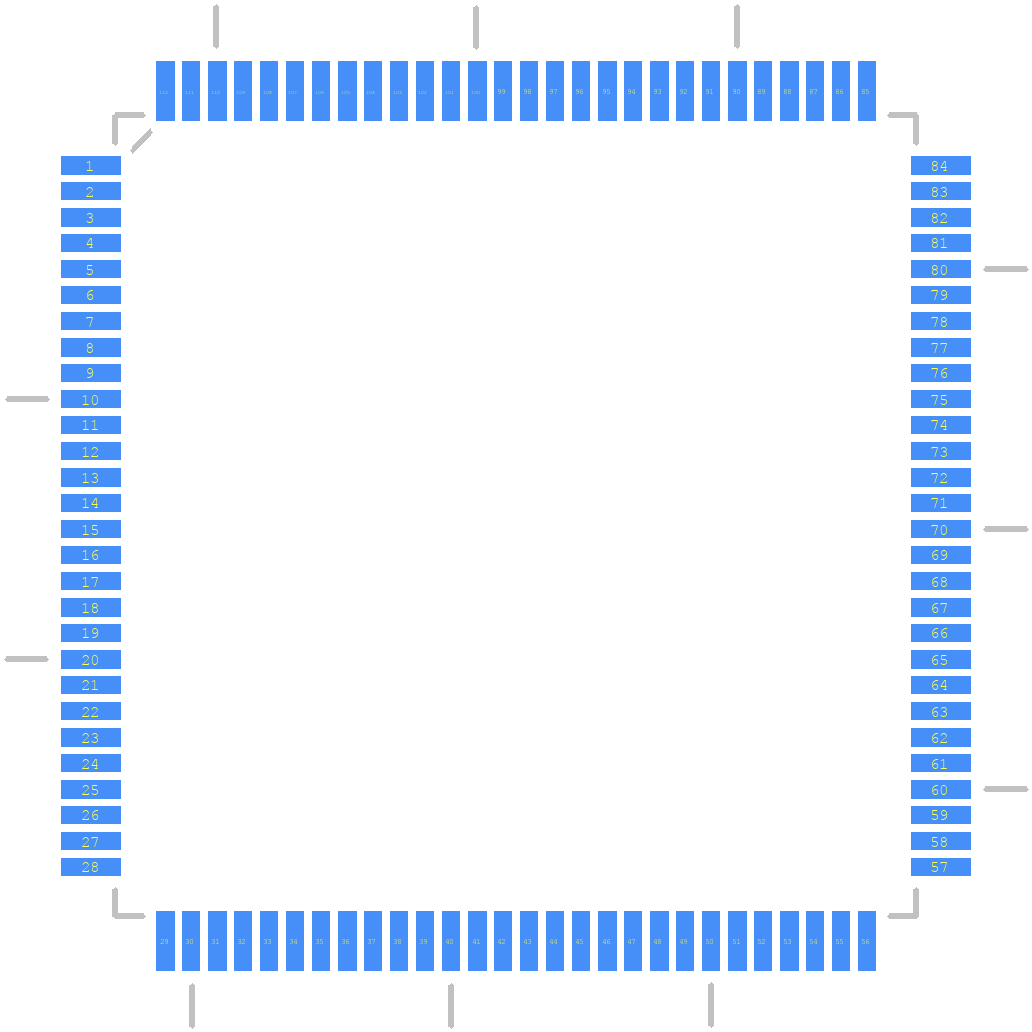

S9S12DG12F1MPVE - NXP PCB footprint - Other - Other - QFP65P2200X2200X160-112N
click to zoom
3D Models
S9S12DG12F1MPVE - NXP  - 3D model - Other - QFP65P2200X2200X160-112N
click to zoom

S9S12DG12F1MPVE Details

  • Manufacturer Part Number:

    S9S12DG12F1MPVE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-10-17

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • DMA Channels:

    NO

  • External Data Bus Width:

    16

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    20

  • Number of Terminals:

    112

  • PWM Channels:

    YES

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    25 MHz

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

S9S12DG12F1MPVE Frequently Asked Questions (FAQs)

  • The S9S12DG12F1MPVE can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 105°C for optimal performance and reliability.
  • To configure the internal oscillator, set the FOSCSEL register to select the desired oscillator frequency, and then trim the oscillator using the TRIM register. Refer to the datasheet for specific values and procedures.
  • The maximum clock frequency for the CPU is 25 MHz, and for peripherals, it depends on the specific peripheral, but typically ranges from 10 MHz to 25 MHz.
  • The S9S12DG12F1MPVE has a built-in watchdog timer (COP) that can be enabled and configured using the COPCTL register. Set the COPCTL register to enable the watchdog timer, and then write a value to the COPR register to set the timeout period.
  • The S9S12DG12F1MPVE has 128 KB of flash memory, but only 124 KB is available for user programming due to the reserved area for the boot loader and other system functions.
