- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S9S12DT12F1MPVE
- Part Number S9S12DT12F1MPVE
- Manufacturer NXP
- Pin Count 112
- Part Category Integrated Circuit
- Package Category Other

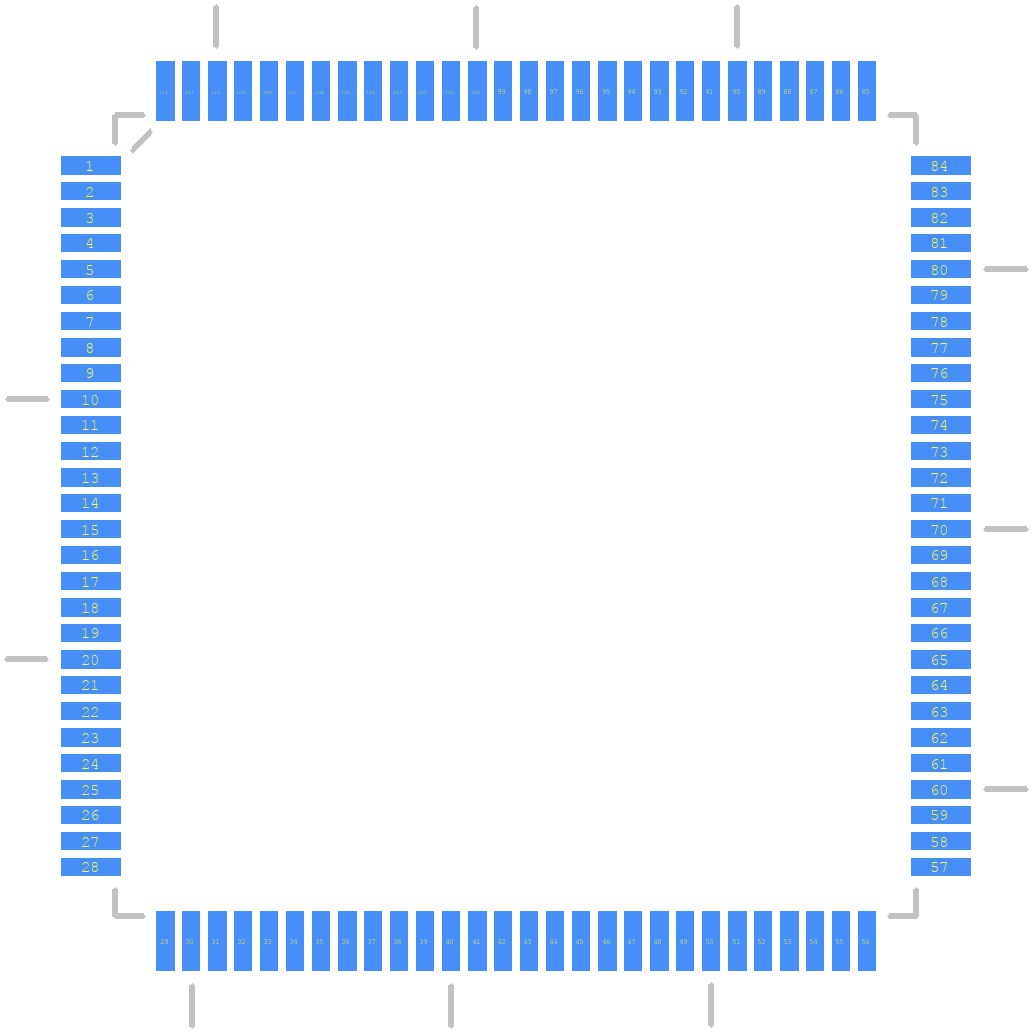

- Footprint Name Other - QFP65P2200X2200X160-112N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
S9S12DT12F1MPVE Details
-
Manufacturer Part Number:
S9S12DT12F1MPVE
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LQFP-112
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Has ADC:
NO
-
Bit Size:
16
S9S12DT12F1MPVE Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the S9S12DT12F1MPVE is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
-
The internal oscillator can be configured using the OSCCTL register. Set the OSCCTL[OSCCLKS] bit to 1 to enable the internal oscillator, and adjust the OSCCTL[OSCCLKR] bits to select the desired frequency (e.g., 4 MHz, 8 MHz, or 16 MHz).
-
The maximum current consumption of the S9S12DT12F1MPVE depends on the operating frequency and voltage. At 16 MHz and 5V, the maximum current consumption is approximately 25 mA. However, this value can be reduced by using power-saving modes and optimizing the system design.
-
The S9S12DT12F1MPVE has a built-in watchdog timer (WDT) that can be enabled and configured using the WDTCTL register. Set the WDTCTL[WDTEN] bit to 1 to enable the WDT, and adjust the WDTCTL[WDTPR] bits to set the timeout period (e.g., 128 ms, 256 ms, or 512 ms).
-
Yes, the S9S12DT12F1MPVE can be used with an external crystal oscillator. Connect the crystal oscillator to the XTAL and EXTAL pins, and configure the OSCCTL register to select the external oscillator as the clock source.
Trust Checks
System Verified
S9S12DT12F1MPVE Overview
Use the download button to access the S9S12DT12F1MPVE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S9S12,
or try a keyword search, such as Microcontrollers
