S9S12ZVL32F0MLCR - NXP

Description: 16-bit Microcontrollers - MCU MagniV 16-bit MCU, S12Z core, 32KB Flash, 25MHz, -40/+125degC, Automotive Qualified, QFP 32

Download S9S12ZVL32F0MLCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

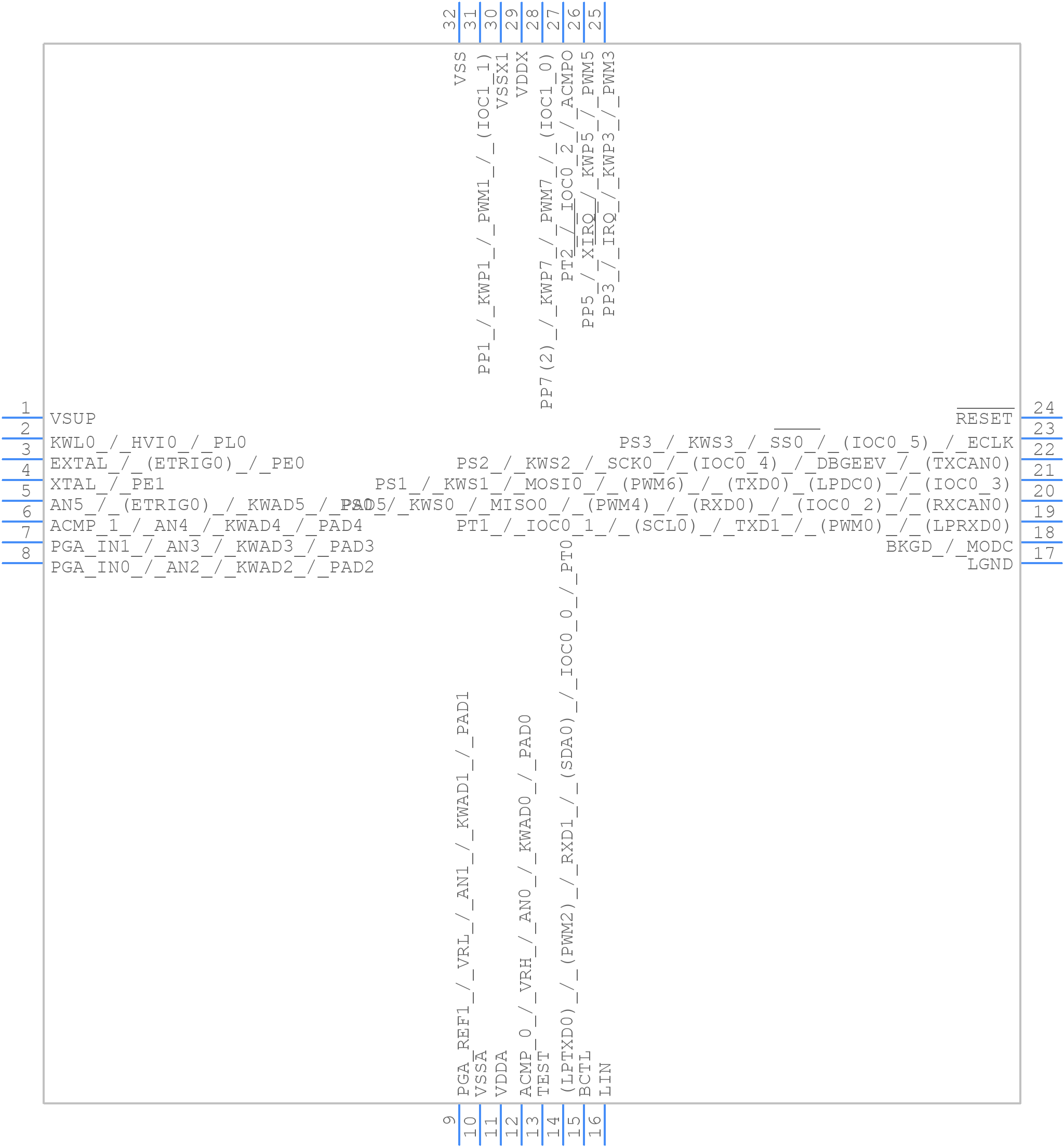

S9S12ZVL32F0MLCR - NXP - PCB symbol
click to zoom
PCB Footprints
S9S12ZVL32F0MLCR - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-LQFP (7x7)_2020
click to zoom
3D Models
S9S12ZVL32F0MLCR - NXP - 3D model - Quad Flat Packages - 32-LQFP (7x7)_2020
click to zoom

S9S12ZVL32F0MLCR Details

  • Manufacturer Part Number:

    S9S12ZVL32F0MLCR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-07-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • Has ADC:

    YES

  • Bit Size:

    16

  • DMA Channels:

    NO

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    19

  • Number of Terminals:

    32

  • PWM Channels:

    YES

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    32 MHz

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

S9S12ZVL32F0MLCR Frequently Asked Questions (FAQs)

  • The S9S12ZVL32F0MLCR can operate in the temperature range of -40°C to 125°C.
  • The clock settings can be configured using the Clock Generation Module (CGM) registers. Refer to the device's reference manual for detailed information on clock configuration.
  • The S9S12ZVL32F0MLCR can operate at a maximum frequency of 25 MHz.
  • The ADC module can be used by configuring the ADC control registers, selecting the analog input channel, and starting the conversion process. Refer to the device's reference manual for detailed information on ADC usage.
  • The LVD module is used to detect when the voltage supply drops below a certain threshold, allowing the microcontroller to take action to prevent damage or data loss.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S9S12ZVL32F0MLCR Overview

Use the download button to access the S9S12ZVL32F0MLCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S9S12, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
