SA101A102JAR - Kyocera AVX

Description: AVX 1nF Multilayer Ceramic Capacitor MLCC 100V dc ±5% Through Hole SA101A102JAR

Download SA101A102JAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA101A102JAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

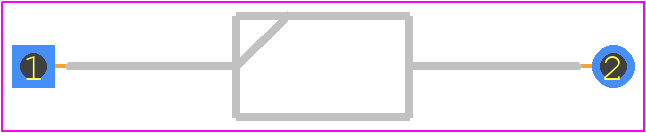

SA101A102JAR - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10
click to zoom
3D Models
SA101A102JAR - Kyocera AVX - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10
click to zoom

SA101A102JAR Details

  • Manufacturer Part Number:

    SA101A102JAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA101A102JAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA101A102JAR is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.1mm. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal stress.
  • Yes, SA101A102JAR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curves and ensure that the component does not exceed its maximum operating temperature.
  • SA101A102JAR is designed to handle power cycling, but it's essential to follow the recommended power cycling guidelines to prevent premature failure. The component can handle up to 1000 power cycles at 85°C, with a maximum power-on time of 10 hours.
  • Yes, SA101A102JAR is compatible with lead-free soldering. The component is designed to meet the requirements of the RoHS directive and can be soldered using lead-free solder alloys.
  • The recommended storage condition for SA101A102JAR is in a dry, cool place, away from direct sunlight and moisture. The component should be stored in its original packaging or in a sealed bag to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA101A102JAR Overview

Use the download button to access the SA101A102JAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA101, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
