SA101A220JAR - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 100V 22 pF C0G (NP0) 5 % .2 in

Download SA101A220JAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA101A220JAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

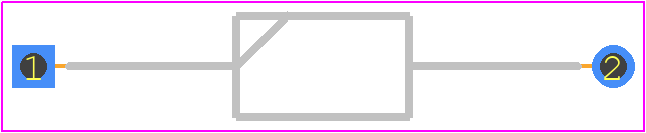

SA101A220JAR - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10-1
click to zoom

SA101A220JAR Details

  • Manufacturer Part Number:

    SA101A220JAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.000022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA101A220JAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA101A220JAR is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.1mm. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal stress.
  • Yes, SA101A220JAR is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the parasitic inductance and capacitance of the component, as well as the PCB layout, to ensure optimal performance.
  • SA101A220JAR is rated for operation up to 125°C, making it suitable for high-temperature environments. However, it's essential to consider the derating of the component's capacitance and ESR at high temperatures to ensure reliable operation.
  • Yes, SA101A220JAR is compatible with lead-free soldering processes, including RoHS and WEEE compliance. The component is designed to withstand the higher temperatures associated with lead-free soldering.
  • The typical ESL of SA101A220JAR is around 1.5nH. This value can vary depending on the PCB layout, component orientation, and other factors. It's essential to consider ESL when designing high-frequency circuits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA101A220JAR Overview

Use the download button to access the SA101A220JAR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SA101, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
