SA101A471JAR - Kyocera AVX

Description: AVX 470pF Multilayer Ceramic Capacitor MLCC 100V dc ±5% Through Hole SA101A471JAR

Download SA101A471JAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA101A471JAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

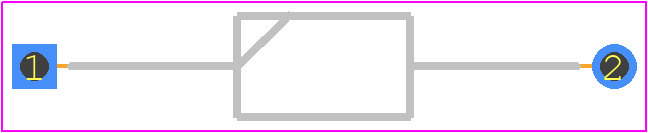

SA101A471JAR - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA102A101JARN
click to zoom
3D Models
SA101A471JAR - Kyocera AVX - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA102A101JARN
click to zoom

SA101A471JAR Details

  • Manufacturer Part Number:

    SA101A471JAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.00047 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA101A471JAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA101A471JAR is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, SA101A471JAR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the component's performance and lifespan may be affected at extreme temperatures.
  • SA101A471JAR is designed to handle power cycling, but the component's lifespan may be affected by the number of power cycles. It's recommended to follow the manufacturer's guidelines for power cycling to ensure the component's reliability.
  • Yes, SA101A471JAR is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • SA101A471JAR should be stored in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C, with a relative humidity of 60% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA101A471JAR Overview

Use the download button to access the SA101A471JAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA101, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
