SA101A561GAA - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 100V 560pF 2% C0G

Download SA101A561GAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA101A561GAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

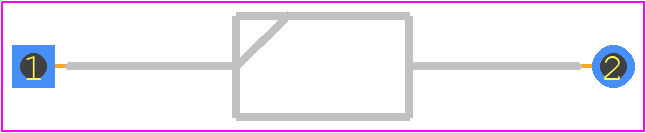

SA101A561GAA - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10
click to zoom

SA101A561GAA Details

  • Manufacturer Part Number:

    SA101A561GAA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.00056 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    2%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    2%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA101A561GAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA101A561GAA is available in the Kyocera AVX Components' recommended land pattern document, which can be found on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the SA101A561GAA is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Consult with Kyocera AVX Components' application engineers or refer to their thermal management guidelines for more information.
  • The SA101A561GAA is designed for high-frequency applications, but its performance may vary depending on the specific frequency range and circuit design. Consult with Kyocera AVX Components' application engineers or refer to their high-frequency modeling and simulation tools to ensure optimal performance in your specific application.
  • Yes, the SA101A561GAA is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profiles and guidelines to ensure reliable assembly and operation.
  • The typical ESL (Equivalent Series Inductance) and ESR (Equivalent Series Resistance) values for SA101A561GAA are not explicitly stated in the datasheet. However, Kyocera AVX Components provides detailed impedance vs. frequency curves and other relevant data in their component models, which can be used to estimate the ESL and ESR values. Consult with their application engineers or refer to their modeling and simulation tools for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA101A561GAA Overview

Use the download button to access the SA101A561GAA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SA101, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
