SA102A220JAA - Kyocera AVX

Description: Multilayer Ceramic Capacitors MLCC - Leaded 200volts 22pF 5% C0G

Download SA102A220JAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA102A220JAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

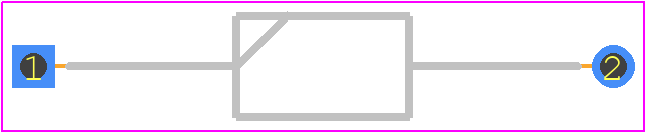

SA102A220JAA - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA105C103JAR*
click to zoom
3D Models
SA102A220JAA - Kyocera AVX - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA105C103JAR*
click to zoom

SA102A220JAA Details

  • Manufacturer Part Number:

    SA102A220JAA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.000022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    200 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA102A220JAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SA102A220JAA is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle the SA102A220JAA's high frequency characteristics, use a controlled impedance layout, minimize trace lengths, and avoid using right-angle bends in your PCB design. Also, consider using a 4-layer stack-up with a dedicated ground plane to reduce noise and EMI.
  • The maximum operating temperature for the SA102A220JAA is 125°C, with a derating of 1.25% per °C above 85°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 245°C ± 5°C, and apply a solder paste with a melting point of 217°C ± 5°C. Also, ensure the PCB is clean and free of oxidation.
  • The recommended storage condition for the SA102A220JAA is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA102A220JAA Overview

Use the download button to access the SA102A220JAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA102, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
