Please enter a minimum 3 letters or numbers
Technical Content
Part Image

SA105A102JAR - Kyocera AVX

Description: 1000 pF ±5% 50V Ceramic Capacitor C0G, NP0 Axial -55°C ~ 125°C

Download SA105A102JAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA105A102JAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

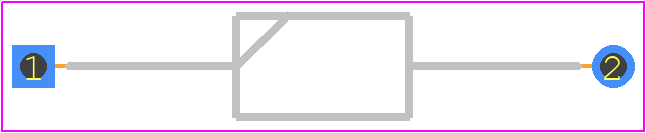

SA105A102JAR - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 2.54mm x 4.32mm
click to zoom
3D Models
SA105A102JAR - Kyocera AVX - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 2.54mm x 4.32mm
click to zoom

SA105A102JAR Details

  • Manufacturer Part Number:

    SA105A102JAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    50 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    C0G

  • Temperature Coefficient:

    30ppm/Cel ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WIRE

SA105A102JAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA105A102JAR is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.15mm.
  • Handle the component by the body, avoiding touching the terminations. Use anti-static wrist straps and mats to prevent electrostatic discharge damage.
  • The maximum reflow temperature for SA105A102JAR is 260°C, with a peak temperature of 240°C for a maximum of 20 seconds.
  • Yes, SA105A102JAR is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering.
  • Store SA105A102JAR components in their original packaging, in a dry, cool place, away from direct sunlight and moisture. Avoid exposing them to temperatures above 30°C or humidity above 60%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA105A102JAR Overview

Use the download button to access the SA105A102JAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA105, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.

Parts related to SA105A102JAR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

SA105A102JAR Alternates

Showing results

Image Part Number Model
Part Image SA105A102JAN Kyocera AVX Components

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Through Hole Mount
Part Image SA105A102JAG Kyocera AVX Components

Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF,
Part Image CC42-102J17CG500P26 Fenghua (HK) Electronics Ltd

Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF,
Part Image CEA10-102-J050GT RCD Components Inc

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Through Hole Mount
Part Image NCMA10NPO102J50TRF NIC Components Corp

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
For a full list of alternate parts for SA105A102JAR, check out Findchips.com
