SA105E224MAR - Kyocera AVX

Description: AVX - SA105E224MAR - CAPACITOR CERAMIC 0.22UF 50V, Z5U, 20%, AXIAL

Download SA105E224MAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SA105E224MAR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

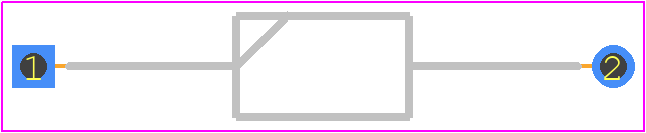

SA105E224MAR - Kyocera AVX PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10_2022
click to zoom
3D Models
SA105E224MAR - Kyocera AVX - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - SA10_2022
click to zoom

SA105E224MAR Details

  • Manufacturer Part Number:

    SA105E224MAR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    El Salvador, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    2.54 mm

  • Dielectric Material:

    CERAMIC

  • JESD-609 Code:

    e3

  • Length:

    4.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    10 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR, 14 INCH

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    Z5U

  • Temperature Coefficient:

    -56/+22% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WIRE

SA105E224MAR Frequently Asked Questions (FAQs)

  • The recommended land pattern for SA105E224MAR can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • The ESR of SA105E224MAR is typically specified in the datasheet. To handle ESR in your design, you can use impedance modeling tools or simulation software to account for the ESR in your circuit analysis. You can also consider using ESR-reducing techniques, such as using multiple capacitors in parallel or using a capacitor with a lower ESR value.
  • The maximum operating temperature of SA105E224MAR is typically specified in the datasheet as 125°C. However, it's essential to note that the capacitor's performance and reliability may degrade at higher temperatures, so it's recommended to operate the capacitor within the specified temperature range for optimal performance.
  • SA105E224MAR is a surface-mount ceramic capacitor, and its performance in high-vibration environments may vary. Kyocera AVX Components provides vibration testing data for their capacitors, which can be found in the datasheet or through their customer support. It's recommended to consult with the manufacturer or a qualified engineer to determine the suitability of SA105E224MAR for your specific application.
  • To ensure the reliability of SA105E224MAR in your design, follow the recommended application guidelines, such as operating voltage, temperature, and power rating. Additionally, consider using derating techniques, such as reducing the voltage or current rating, to reduce the stress on the capacitor. It's also essential to follow proper PCB design and assembly practices to minimize the risk of defects or failures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA105E224MAR Overview

Use the download button to access the SA105E224MAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA105, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
