SA286000 footprint, schematic symbol and 3D model by On Shore Technology Inc.

Symbol

click to zoom

PCB Footprints

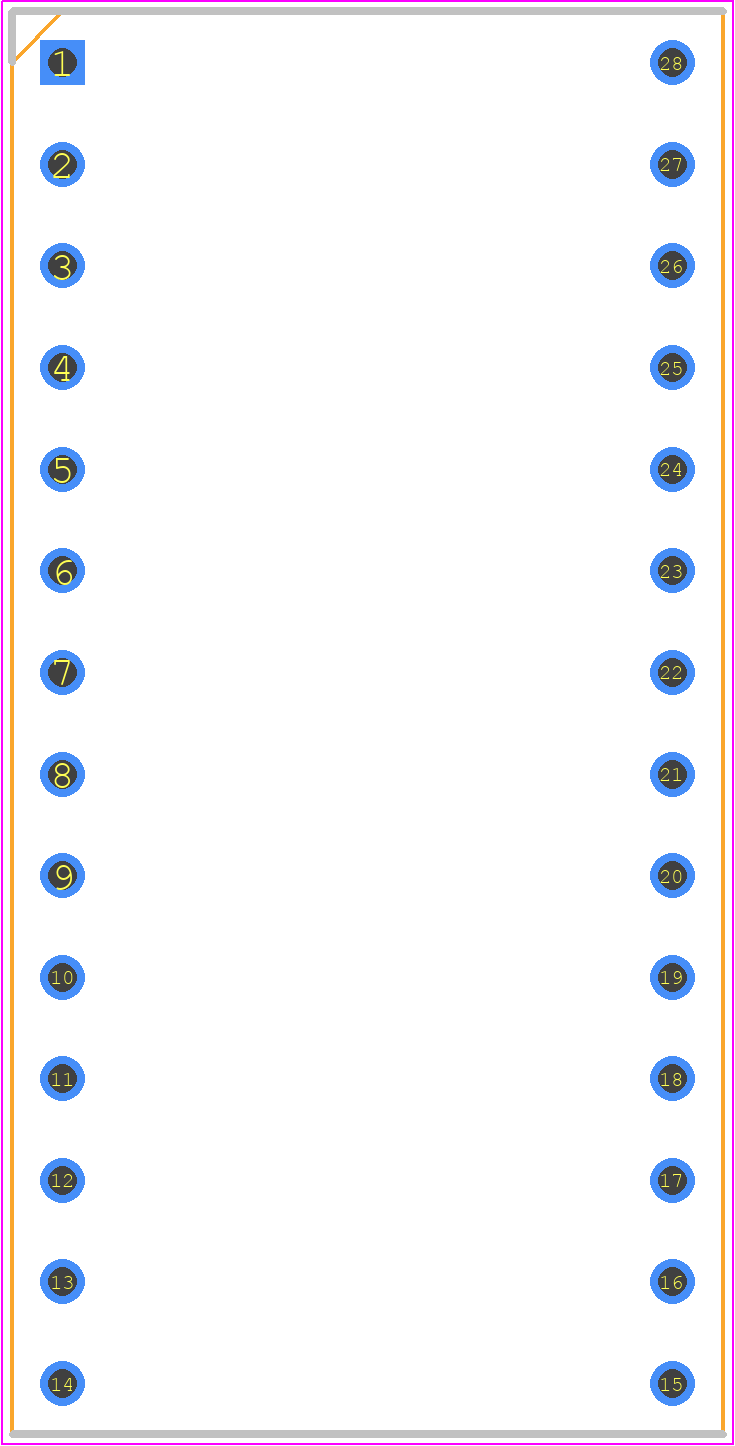

SA286000 - On Shore Technology Inc. PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SA286000

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SA286000
Part Number SA286000
Manufacturer On Shore Technology Inc.
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - SA286000
Released Date Jun 28, 2025
Last Modified Date Jun 28, 2025 3:38 AM UTC
Pinout / Pin List Click Here (Member Only)

SA286000 Details

Manufacturer Part Number:
SA286000
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Not Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
On-Shore Technology Inc
YTEOL:
7.5
Body Breadth:
0.4 inch
Body Length:
1.4 inch
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
TIN OVER NICKEL
Contact Style:
RND PIN-SKT
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Housing Material:
GLASS FILLED POLYESTER
Insulation Resistance:
10000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
28
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

SA286000 Frequently Asked Questions (FAQs)

The recommended storage temperature for SA286000 is -40°C to 125°C, as specified by On-Shore Technology Inc.
Yes, SA286000 is designed to withstand high-vibration environments, making it suitable for applications in aerospace, defense, and industrial settings.
The typical lead time for SA286000 is 8-12 weeks, depending on the quantity and availability of the component.
Yes, SA286000 is RoHS (Restriction of Hazardous Substances) compliant, meeting the European Union's directive on the restriction of hazardous substances in electrical and electronic equipment.
The maximum operating frequency of SA286000 is 1 GHz, making it suitable for high-frequency applications such as radar, communication systems, and microwave devices.

Trust Checks

Community Provided

System Verified

Community Approved

SA286000 Overview

Use the download button to access the SA286000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SA286, or try a keyword search, such as Sockets and Chip Carriers
