SA5230DG - onsemi

Description: Obsolete - Operational Amplifier, Low Voltage

Download SA5230DG Model

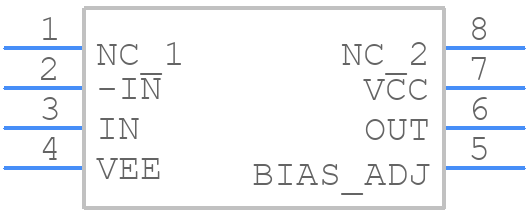

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SA5230DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
SA5230DG - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

SA5230DG Details

  • Manufacturer Part Number:

    SA5230DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.15 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -7.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.25 V/us

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage Limit-Max:

    9 V

  • Supply Voltage-Nom (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    600

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm

SA5230DG Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the SA5230DG. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to onsemi's application note AND8325/D for a recommended layout.
  • The input capacitor value depends on the input voltage, frequency, and desired attenuation. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. Consult onsemi's application note AND8325/D for more information on capacitor selection.
  • The SA5230DG can operate from -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management to prevent overheating.
  • Yes, the SA5230DG is suitable for switching power supply designs. However, ensure that the input voltage is within the recommended range, and the device is properly bypassed to prevent voltage spikes and noise.
  • Common issues like oscillation or instability can be caused by poor PCB layout, inadequate bypassing, or incorrect component selection. Check the application note AND8325/D for troubleshooting guidelines and consult onsemi's technical support if needed.
