Part Image

SA56004ATK,118 - NXP

Description: Temp Sensor Digital Serial (2-Wire, I2C, SMBus) 8-Pin HVSON EP T/R

Download SA56004ATK,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

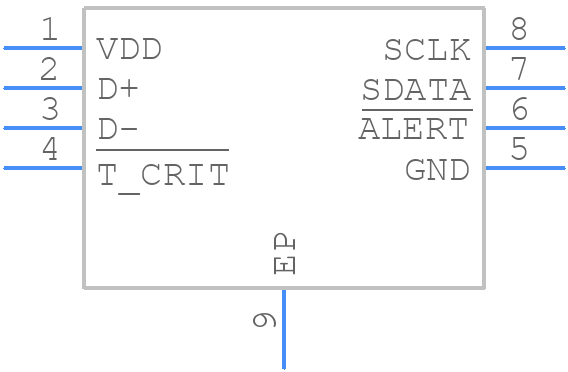

Symbol
SA56004ATK,118 - NXP - PCB symbol
click to zoom
PCB Footprints
SA56004ATK,118 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON8-2021
click to zoom
3D Models
SA56004ATK,118 - NXP - 3D model - Small Outline No-lead - HVSON8-2021
click to zoom

SA56004ATK,118 Details

  • Manufacturer Part Number:

    SA56004ATK,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    HVSON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT782-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.82 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

SA56004ATK,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SA56004ATK,118 is 2.7V to 5.5V.
  • To ensure proper power-on, the VDD pin should be powered up before the VBAT pin. Also, the VDD pin should be powered up slowly (dV/dt < 1V/ms) to prevent latch-up.
  • The VBAT pin is used to connect a battery or a supercapacitor to store data in the Real-Time Clock (RTC) and other registers during power-down. It should be connected to a battery or a supercapacitor with a recommended value of 3.3V or higher.
  • To configure the SA56004ATK,118 for low-power operation, set the Power-Down mode (PD) bit in the Control Register (CR) to '1'. This will reduce the current consumption to a minimum.
  • The SA56004ATK,118 supports a maximum clock frequency of 32.768 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA56004ATK,118 Overview

Use the download button to access the SA56004ATK,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA560, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
