Technical Content
Part Image

SA602AD/01,118 - NXP

Description: NXP - SA602AD/01,118 - DOUBLE-BALANCED MIXER, 500MHZ, SOIC-8

Download SA602AD/01,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

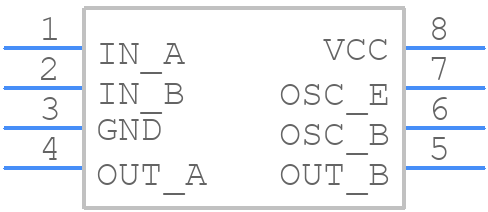

Symbol
SA602AD/01,118 - NXP - PCB symbol
click to zoom
PCB Footprints
SA602AD/01,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8
click to zoom
3D Models
SA602AD/01,118 - NXP - 3D model - Small Outline Packages - SO8
click to zoom

SA602AD/01,118 Details

  • Manufacturer Part Number:

    SA602AD/01,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012, SOT96-1, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

SA602AD/01,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range is 4.5V to 5.5V, with a typical voltage of 5V.
  • To ensure proper biasing, connect the VCC pin to a 5V power supply, and decouple it with a 10uF capacitor to ground. Also, connect the VEE pin to ground.
  • The maximum input signal amplitude is 1.5V peak-to-peak (Vpp) for optimal performance and to prevent distortion.
  • For single-ended operation, connect the IN+ pin to the input signal and the IN- pin to ground. For differential operation, connect the IN+ pin to one input signal and the IN- pin to the other input signal.
  • The EN pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled and consumes minimal power.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA602AD/01,118 Overview

Use the download button to access the SA602AD/01,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA602, or try a keyword search, such as RF/Microwave Mixers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
