SAA7121H - NXP

SAA7121H Details

• Manufacturer Part Number:

  SAA7121H

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFP

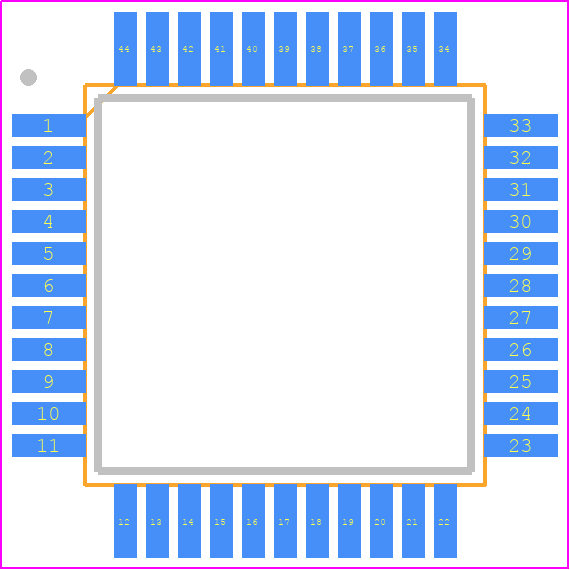

• Package Description:

  10 X 10 MM, 1.75 MM HEIGHT, PLASTIC, SOT-307-2, QFP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• Additional Feature:

  IT ALSO REQUIRES 3V TO 3.6V SUPPLY

• Consumer IC Type:

  COLOR SIGNAL ENCODER

• Input Type:

  R-Y; B-Y; Y

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e3

• Length:

  10 mm

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP44,.5SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.1 mm

• Supply Voltage-Max (Vsup):

  3.5 V

• Supply Voltage-Min (Vsup):

  3.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Video Standard:

  PAL; NTSC

• Width:

  10 mm
