SAB-C167CR-LM - Infineon

Description: MicroController, 16-Bit, 144 Pin, Plastic, QFP

Download SAB-C167CR-LM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SAB-C167CR-LM - Infineon - PCB symbol
click to zoom
PCB Footprints

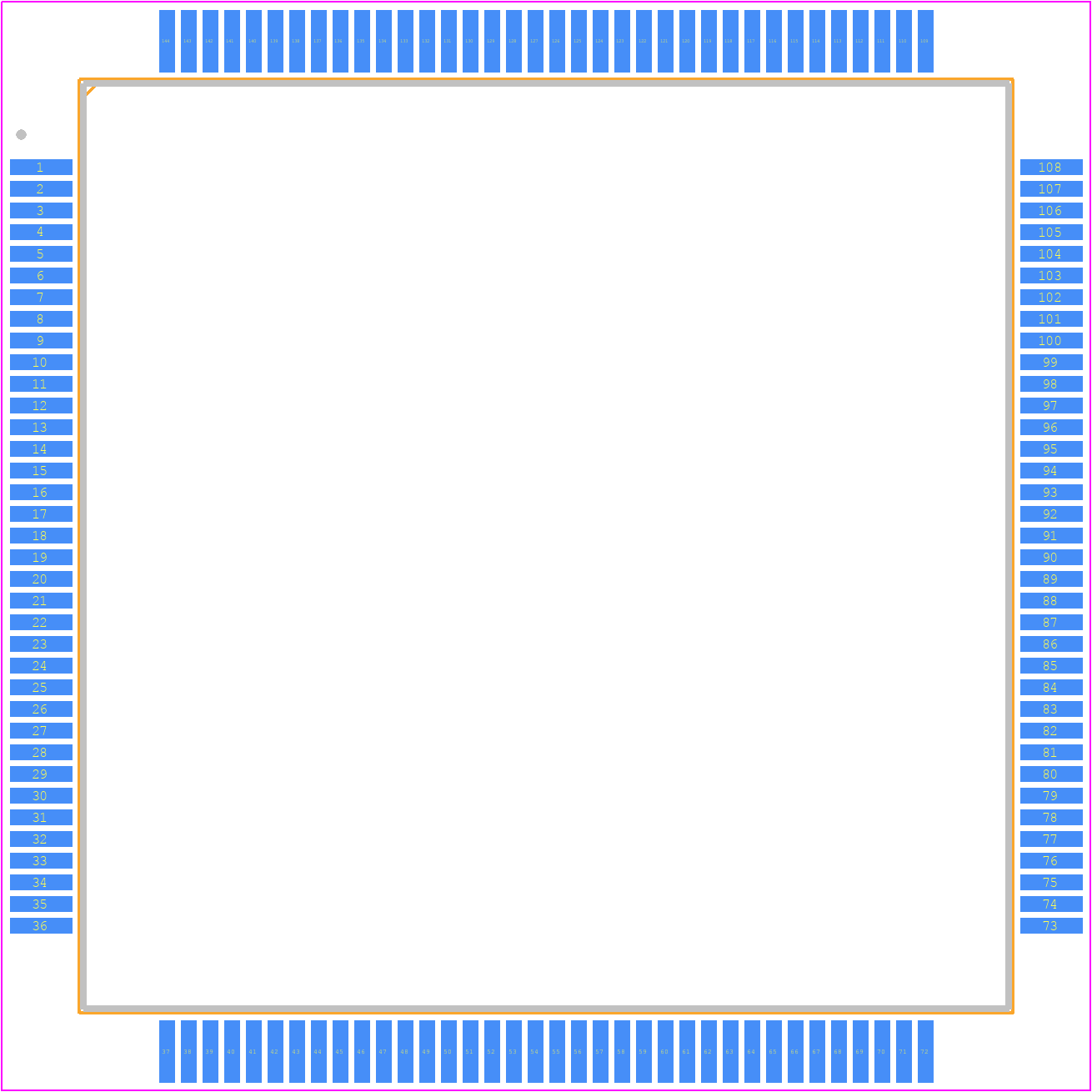

SAB-C167CR-LM - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - P-MQFP-144-8
click to zoom
3D Models
SAB-C167CR-LM - Infineon - 3D model - Quad Flat Packages - P-MQFP-144-8
click to zoom

SAB-C167CR-LM Details

  • Manufacturer Part Number:

    SAB-C167CR-LM

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, MQFP-144

  • Pin Count:

    144

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    16

  • CPU Family:

    80166

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e0

  • Length:

    28 mm

  • Number of I/O Lines:

    111

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    70 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP144,1.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM Programmability:

    MROM

  • Seated Height-Max:

    2.75 mm

  • Speed:

    25 MHz

  • Supply Current-Max:

    120 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SAB-C167CR-LM Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the SAB-C167CR-LM is 16 MHz or 20 MHz, depending on the application requirements.
  • The watchdog timer on the SAB-C167CR-LM can be configured using the WDTCON register. The watchdog timer can be enabled or disabled, and the timeout period can be set to one of several predefined values.
  • The maximum current that can be sourced or sunk by the I/O pins of the SAB-C167CR-LM is 20 mA per pin, with a total current limit of 100 mA for all I/O pins combined.
  • A bootloader on the SAB-C167CR-LM can be implemented using the microcontroller's built-in flash programming interface. The bootloader can be written in C or assembly language and must be designed to work with the microcontroller's specific memory map and programming protocol.
  • The power consumption of the SAB-C167CR-LM depends on the operating frequency, voltage, and mode of operation. In active mode, the microcontroller typically consumes around 10-20 mA at 5V and 16 MHz. In sleep mode, the current consumption is typically in the range of 10-50 uA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SAB-C167CR-LM Overview

Use the download button to access the SAB-C167CR-LM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAB-C, or try a keyword search, such as Microcontrollers
