Infineon recommends a thermal pad on the bottom side of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliability, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and storage temperature (Tstg). Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Infineon recommends following standard ESD precautions when handling SAE800G devices, including using an ESD wrist strap or mat, and storing devices in anti-static packaging. The human body model (HBM) ESD rating for SAE800G is 2 kV.
Yes, the SAE800G is designed to withstand vibrations. However, it's essential to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce stress on the device.
To troubleshoot issues with the SAE800G, start by reviewing the application circuit and PCB design for any potential errors or omissions. Check for proper power supply decoupling, signal integrity, and thermal management. If issues persist, consult Infineon's application notes and technical support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SAE800G Overview

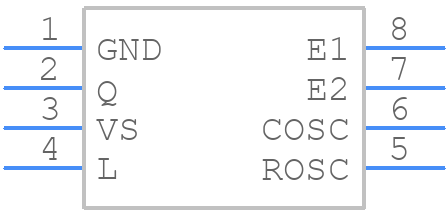

Use the download button to access the SAE800G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAE80,
or try a keyword search, such as Audio Synthesizer ICs
