SAF-C167CR-LM - Infineon

SAF-C167CR-LM Details

• Manufacturer Part Number:

  SAF-C167CR-LM

• Part Life Cycle Code:

  Obsolete

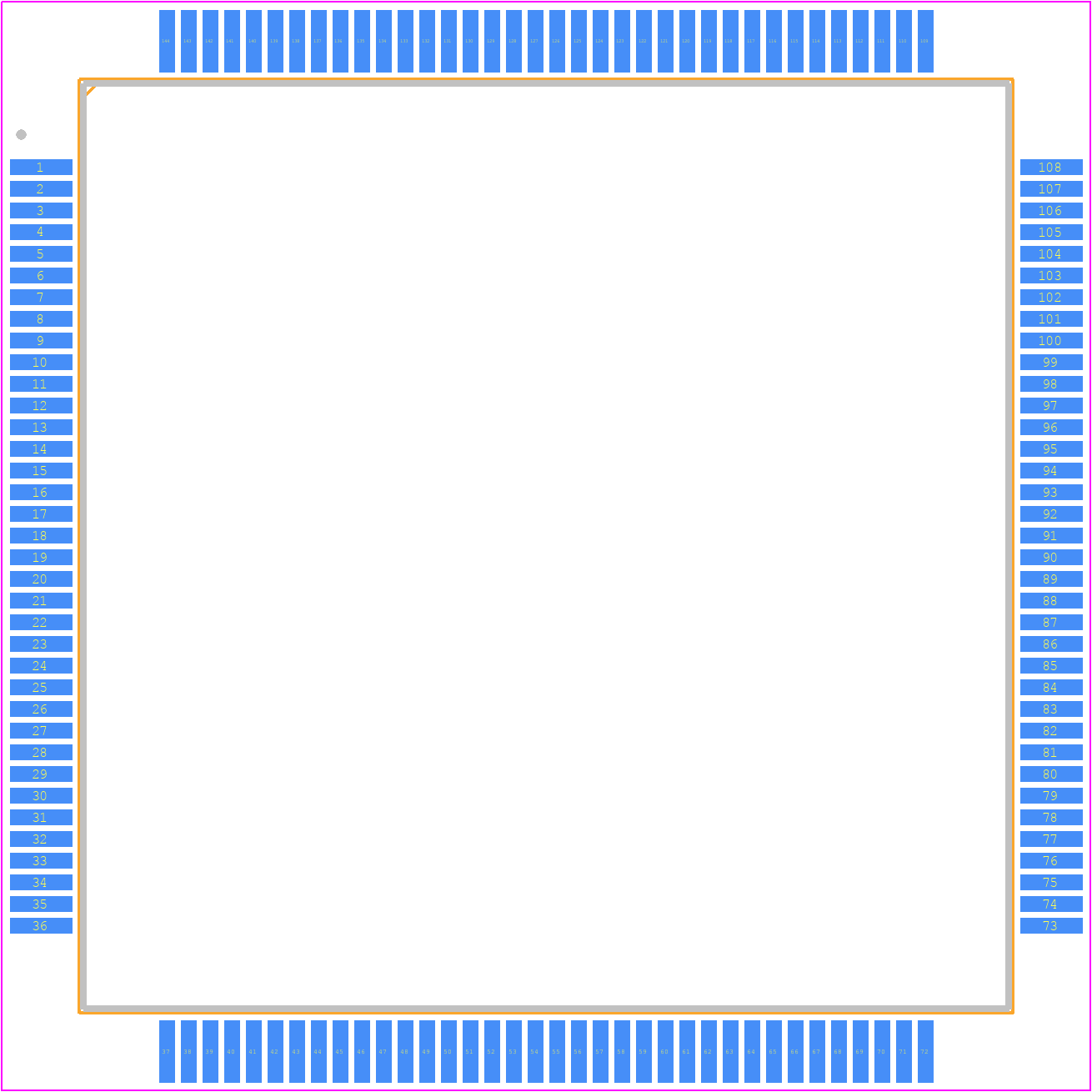

• Part Package Code:

  QFP

• Package Description:

  PLASTIC, MQFP-144

• Pin Count:

  144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  16

• CPU Family:

  80166

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e0

• Length:

  28 mm

• Number of I/O Lines:

  111

• Number of Terminals:

  144

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP144,1.2SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM Programmability:

  MROM

• Seated Height-Max:

  2.75 mm

• Speed:

  25 MHz

• Supply Current-Max:

  120 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
