SAFFB1G56AC0F0AR1X - Murata Electronics

Description: 1.56GHz 1.1dB 50Ω SMD-5P,1.1x0.9mm SAW Filters ROHS

Download SAFFB1G56AC0F0AR1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

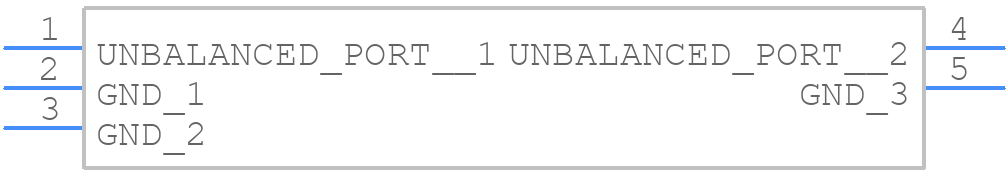

SAFFB1G56AC0F0AR1X - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SAFFB1G56AC0F0AR1X - Murata Electronics PCB footprint - Other - Other - SAFFB1G56AC0F0AR1X-1
click to zoom
3D Models
SAFFB1G56AC0F0AR1X - Murata Electronics - 3D model - Other - SAFFB1G56AC0F0AR1X-1
click to zoom

SAFFB1G56AC0F0AR1X Details

  • Manufacturer Part Number:

    SAFFB1G56AC0F0AR1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    TR, 7 INCH

  • Center or Cutoff Frequency (fo/fc):

    1561.1 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    0.5 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    1.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    0.9 mm

SAFFB1G56AC0F0AR1X Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern Recommendation document for more details.
  • Ensure a minimum of 1mm clearance around the component for airflow, and consider using thermal vias or a thermal pad to dissipate heat. The component's thermal resistance (Rth) is 10°C/W.
  • The component is rated for operation from -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
  • Yes, the component is designed to withstand vibrations up to 10G (10Hz to 2kHz) and shocks up to 100G (11ms). However, it's recommended to perform additional testing and validation for specific vibration profiles.
  • Follow Murata's recommended moisture sensitivity level (MSL) handling procedures, and consider using a conformal coating or potting compound to protect the component from moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SAFFB1G56AC0F0AR1X Overview

Use the download button to access the SAFFB1G56AC0F0AR1X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAFFB, or try a keyword search, such as SAW Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
