SAK-TC1724N-192F80HRAB - Infineon

SAK-TC1724N-192F80HRAB Details

• Manufacturer Part Number:

  SAK-TC1724N-192F80HRAB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

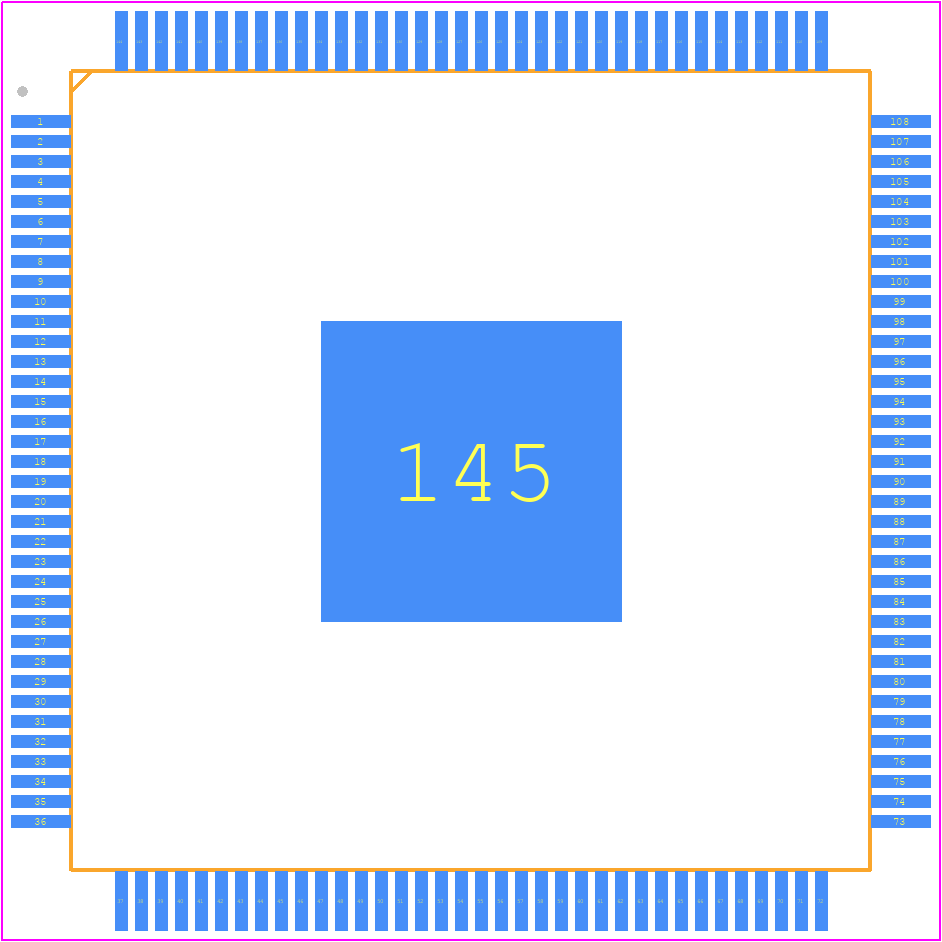

• Package Description:

  LQFP-144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  TC1724

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G144

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of I/O Lines:

  95

• Number of Serial I/Os:

  5

• Number of Terminals:

  144

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  HQFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• RAM (bytes):

  163840

• ROM (words):

  1572864

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  80 MHz

• Supply Current-Max:

  248 mA

• Supply Voltage-Max:

  1.43 V

• Supply Voltage-Min:

  1.17 V

• Supply Voltage-Nom:

  1.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
