SAK-TC275T-64F200NDC - Infineon

SAK-TC275T-64F200NDC Details

• Manufacturer Part Number:

  SAK-TC275T-64F200NDC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

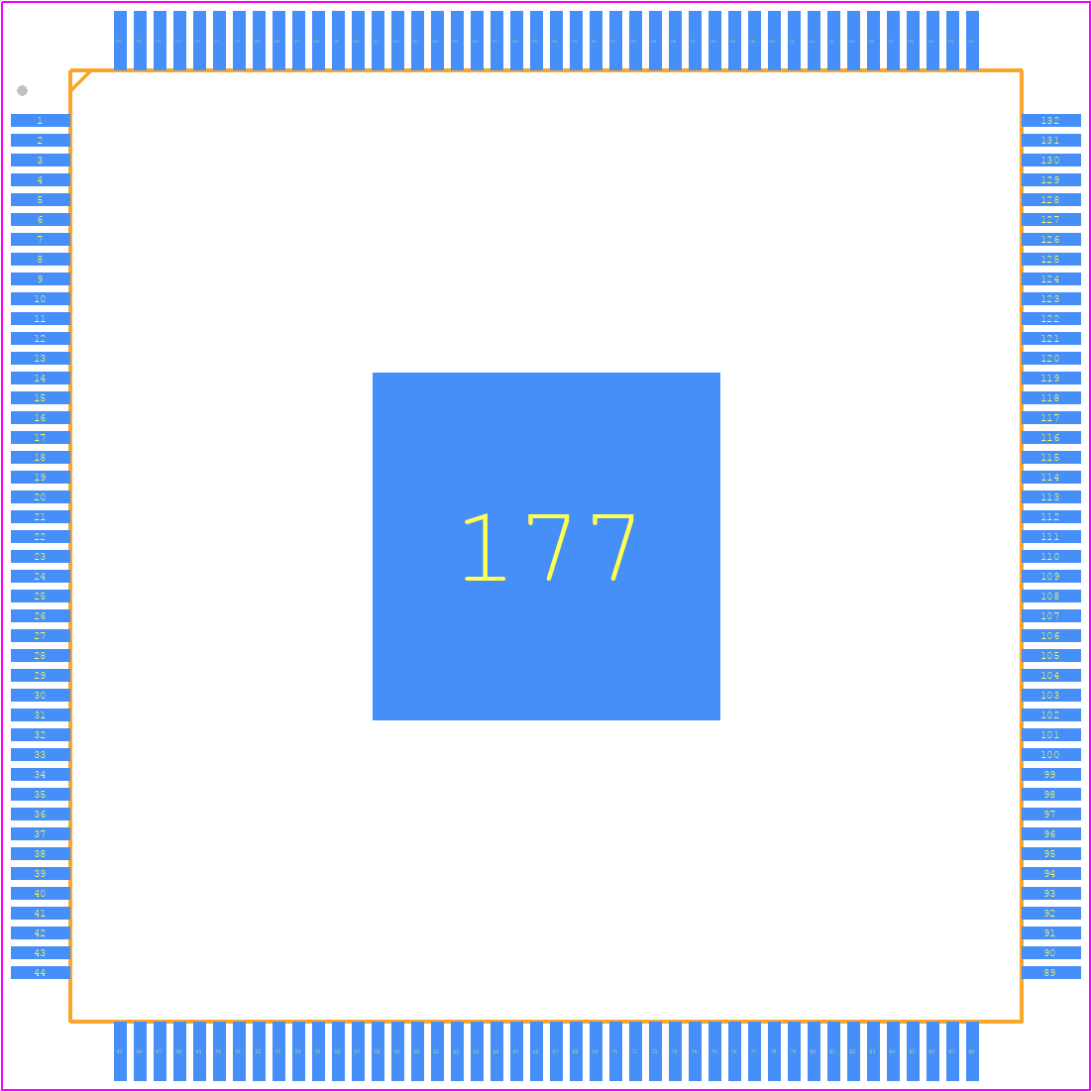

• Package Description:

  LQFP-176

• HTS Code:

  8542.31.00.25

• Date Of Intro:

  2018-11-19

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  9

• Has ADC:

  YES

• Additional Feature:

  RAM SIZE CAPTURED INCLUSIVE OF CACHE, 48 A/D INPUT LINES; 14 NUMBER OF ADC MODULES

• Bit Size:

  32

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G176

• Length:

  24 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  176

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  483328

• ROM (words):

  4194304

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  200 MHz

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
