SAK-TC364DP-64F300WAA - Infineon

Description: 144-lqfp-

Download SAK-TC364DP-64F300WAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

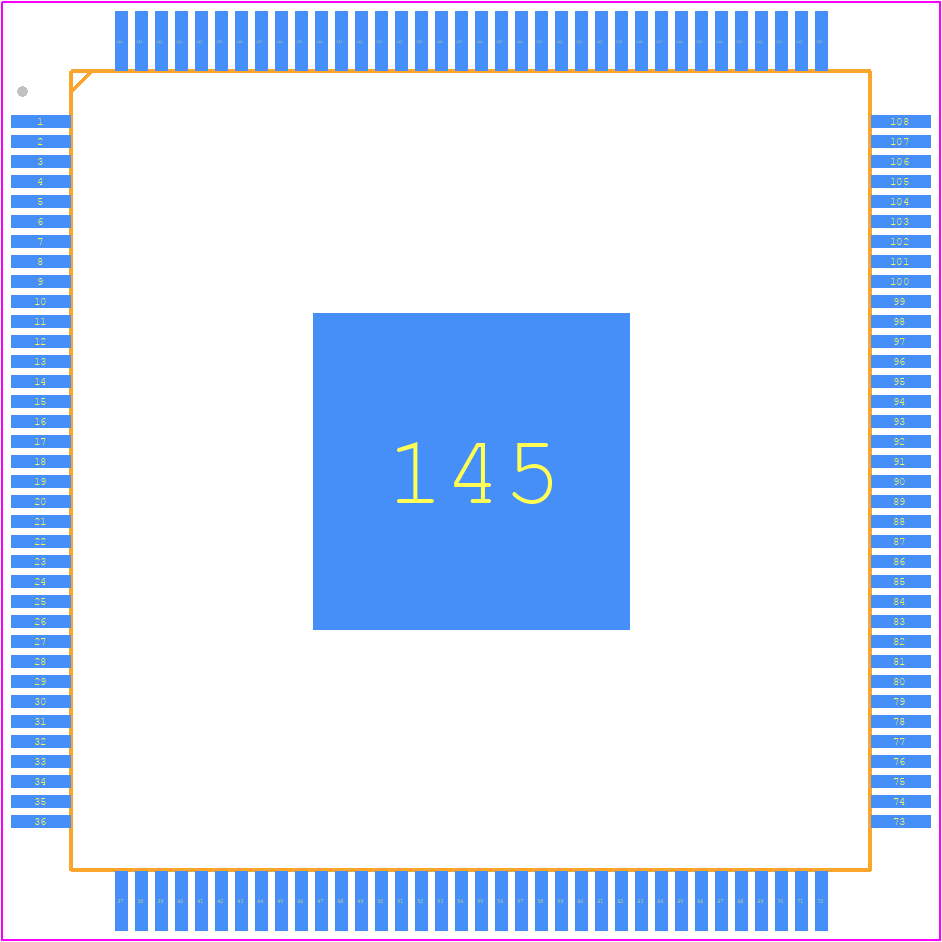

SAK-TC364DP-64F300WAA - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - PG-LQFP-144-25
click to zoom
3D Models
SAK-TC364DP-64F300WAA - Infineon  - 3D model - Quad Flat Packages - PG-LQFP-144-25
click to zoom

SAK-TC364DP-64F300WAA Details

  • Manufacturer Part Number:

    SAK-TC364DP-64F300WAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-144

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    20

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 5V NOM SUPPLY

  • Bit Size:

    32

  • Clock Frequency-Max:

    160 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    144

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
