SAK-XC2238N-24F40LAA - Infineon

SAK-XC2238N-24F40LAA Details

• Manufacturer Part Number:

  SAK-XC2238N-24F40LAA

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

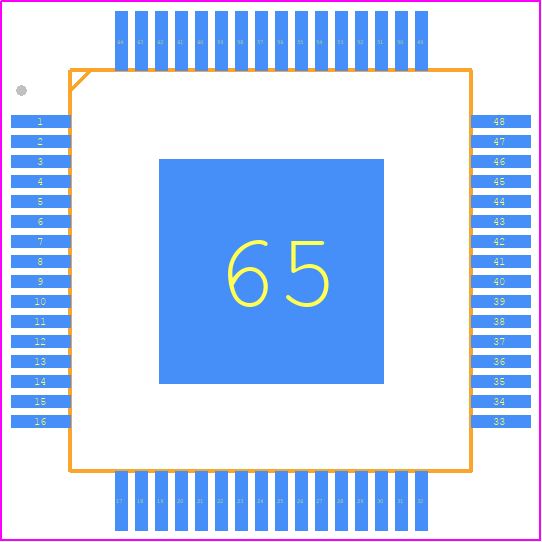

• Package Description:

  0.50 MM PITCH, GREEN, PLASTIC, LQFP-64

• Pin Count:

  64

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  32

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e3

• Length:

  10 mm

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  39

• Number of Terminals:

  64

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP64,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM (words):

  196608

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  40 MHz

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  10 mm
