Part Image

SAM-M10Q-00B - u-blox

Description: GNSS / GPS Modules M10 precision GNSS patch antenna module

Download SAM-M10Q-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

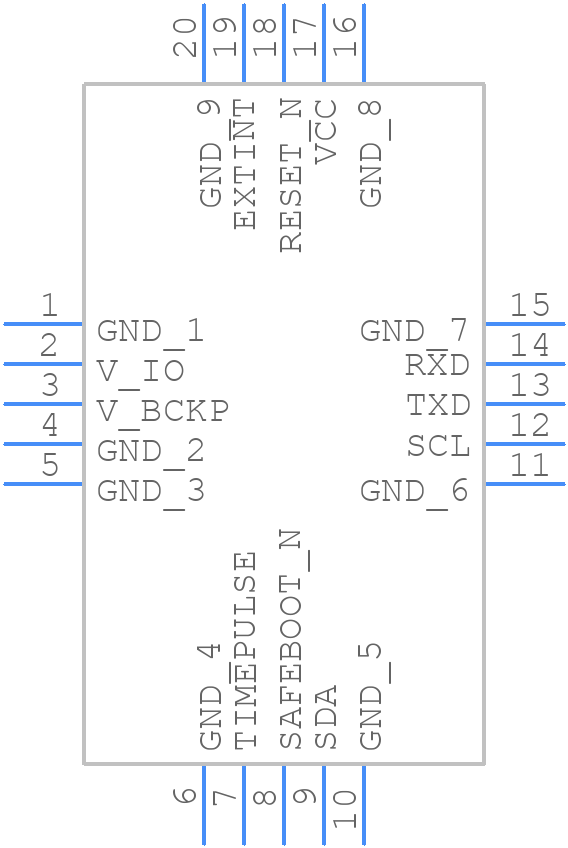

Symbol
SAM-M10Q-00B - u-blox - PCB symbol
click to zoom

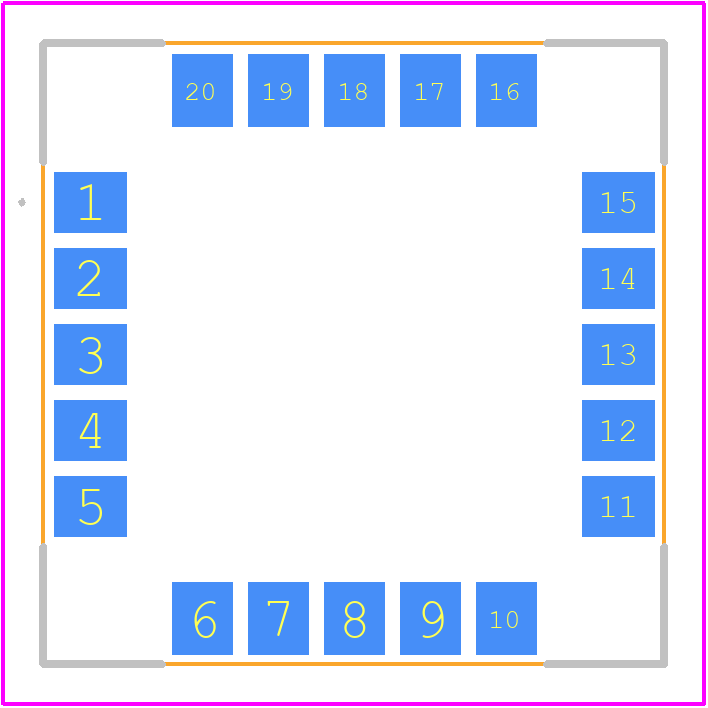

PCB Footprints
SAM-M10Q-00B - u-blox PCB footprint - Other - Other - SAM-M10Q-00B-2
click to zoom
3D Models
SAM-M10Q-00B - u-blox - 3D model - Other - SAM-M10Q-00B-2
click to zoom

SAM-M10Q-00B Details

  • Manufacturer Part Number:

    SAM-M10Q-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    7

  • Application:

    BEIDOU/BDSB1C/GALILEO/GLONASS/GNSS/GPS/SBAS/QZSS

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Omnidirectional:

    YES

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC20,.6,75

  • Polarization:

    RHCP

  • RF/Microwave Device Type:

    ANTENNA-OTHER

  • Screening Level:

    AEC-Q104; TS 16949

  • Surface Mount:

    YES

  • Transmission Power-Max:

    0.001 W

SAM-M10Q-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the backup battery voltage (VBACKUP) if used. This ensures that the module's internal voltage regulators are properly initialized.
  • The module can be configured using the u-blox u-center software or AT commands to select the appropriate frequency band and regulatory settings for the target region or country.
  • The maximum current consumption of the SAM-M10Q-00B module is approximately 75 mA during continuous transmission and 25 mA during standby mode, according to the datasheet.
  • Yes, but it is recommended to use a u-blox-approved antenna to ensure optimal performance and compliance with regulatory requirements. Non-u-blox antennas may require additional testing and certification.
  • Common issues include poor antenna placement, multipath interference, or incorrect configuration. Try repositioning the antenna, checking the module's configuration, and verifying the satellite visibility in the target environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SAM-M10Q-00B Overview

Use the download button to access the SAM-M10Q-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAM-M, or try a keyword search, such as RF/Microwave Antennas

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
