- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SAM-M8Q-0-10
- Part Number SAM-M8Q-0-10
- Manufacturer u-blox
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SAM-M8Q-0-10
- Released Date Jul 9, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SAM-M8Q-0-10 Details
-
Manufacturer Part Number:
SAM-M8Q-0-10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Manufacturer:
u-blox AG
-
YTEOL:
3
SAM-M8Q-0-10 Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply power to the module, then wait for at least 100 ms before sending any commands or data. This allows the module to complete its internal initialization.
-
The SAM-M8Q-0-10 has an internal antenna, but it can also be used with an external antenna. To configure the module for use with an external antenna, connect the antenna to the ANT pad on the module and set the ANT_SEL pin to '1' (high).
-
The maximum update rate for the SAM-M8Q-0-10 is 18 Hz, but this can be adjusted using the 'Measurement Rate' command (CFG-RATE) in the u-blox protocol.
-
The internal LED on the SAM-M8Q-0-10 can be enabled or disabled using the 'LED Control' command (CFG-LED) in the u-blox protocol.
-
The typical current consumption of the SAM-M8Q-0-10 is around 50 mA, but this can vary depending on the operating mode and the number of satellites in view.
Trust Checks
Expert Contribution
System Verified
Community Approved
SAM-M8Q-0-10 Overview

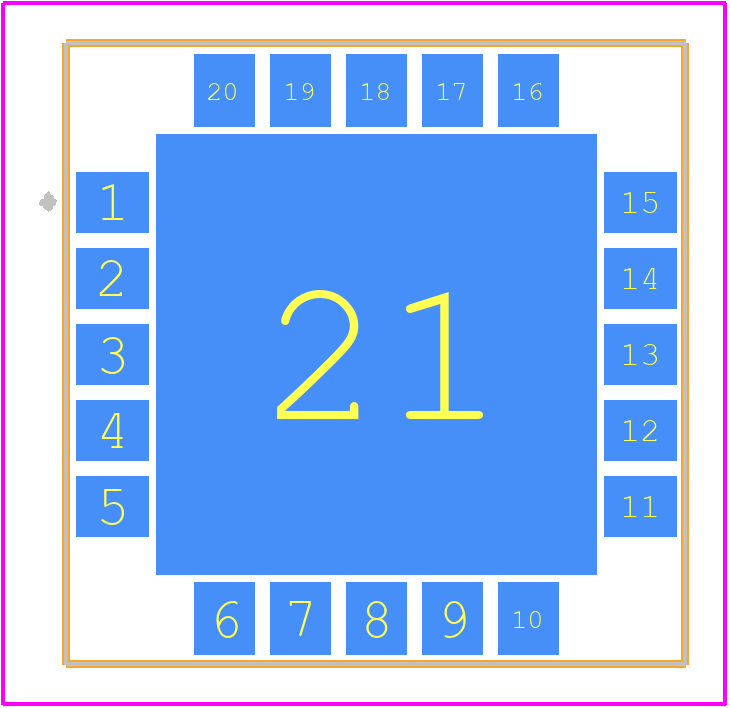

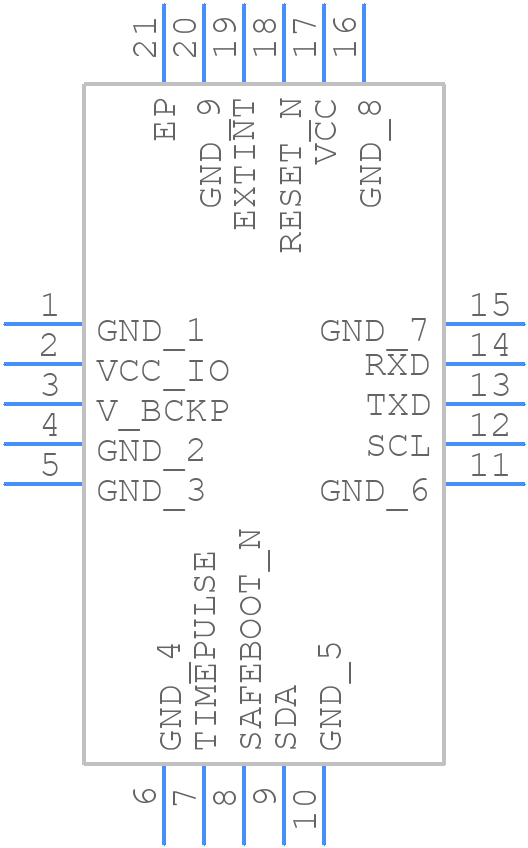

Use the download button to access the SAM-M8Q-0-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAM-M,
or try a keyword search, such as RF/Microwave Antennas
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
