SAM-M8Q-0 - u-blox

Description: SAM-M8Q RF Receiver Galileo, GLONASS, GPS 1.575GHz, 1.602GHz -165dBm 400kbps

Download SAM-M8Q-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

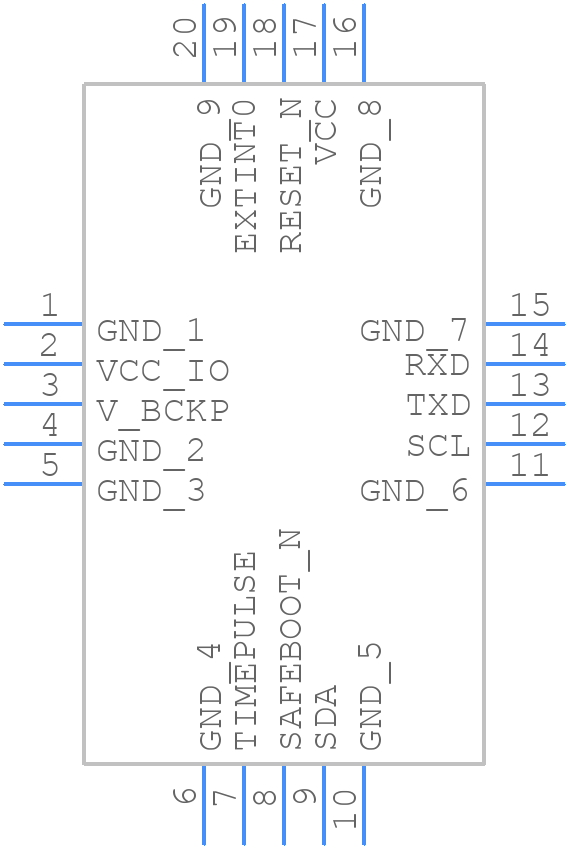

SAM-M8Q-0 - u-blox - PCB symbol
click to zoom
PCB Footprints

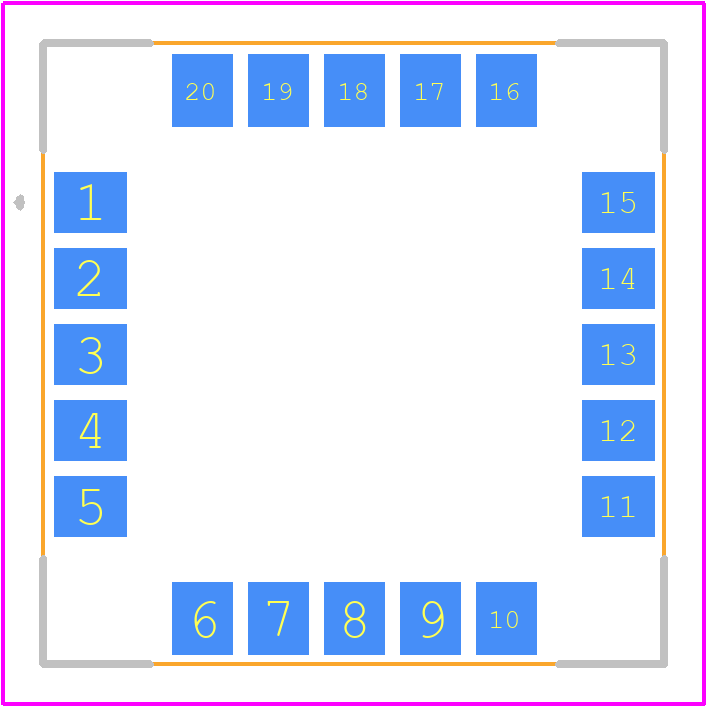

SAM-M8Q-0 - u-blox PCB footprint - Other - Other - SAM-M8Q-0-2
click to zoom
3D Models
SAM-M8Q-0 - u-blox - 3D model - Other - SAM-M8Q-0-2
click to zoom

SAM-M8Q-0 Details

  • Manufacturer Part Number:

    SAM-M8Q-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    3

  • RF/Microwave Device Type:

    ANTENNA-OTHER

SAM-M8Q-0 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before sending any commands or data. This allows the module to complete its internal initialization.
  • The SAM-M8Q-0 module can be configured using the UBX-CFG-NAV5 command to select the desired GNSS system. For example, to enable GPS and GLONASS, send the command 'UBX-CFG-NAV5 0x22 0x07 0x00 0x00 0x00 0x00 0x01 0x01'.
  • The maximum update rate of the SAM-M8Q-0 module is 18 Hz, but this can be adjusted using the UBX-CFG-RATE command. For example, to set the update rate to 10 Hz, send the command 'UBX-CFG-RATE 0x06 0x0A'.
  • To reset the SAM-M8Q-0 module to its default settings, send the command 'UBX-CFG-CFG 0x09 0x00 0x00 0x00 0x00 0x00 0x00 0x00'. This will restore the module's configuration to its factory default settings.
  • The typical current consumption of the SAM-M8Q-0 module is around 45 mA during continuous navigation, but this can vary depending on the specific operating conditions and configuration.
