SAM9X60D6KT-I/4GB - Microchip

Description: Microprocessors - MPU ARM926 MPU,64MBIT DDR2,BGA,IND TEMP,T&R

Download SAM9X60D6KT-I/4GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SAM9X60D6KT-I/4GB - Microchip - PCB symbol
click to zoom
PCB Footprints

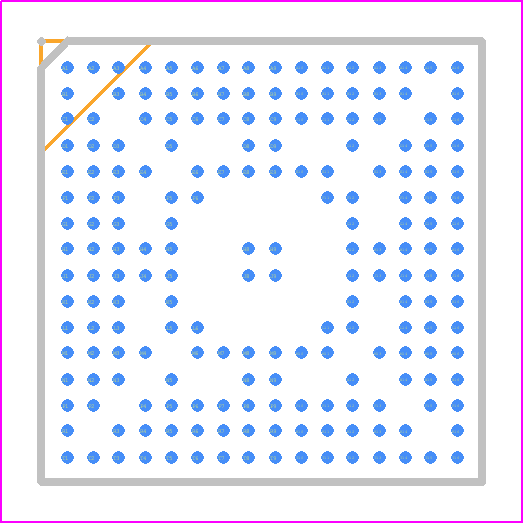

SAM9X60D6KT-I/4GB - Microchip PCB footprint - BGA - BGA - 196-Lead Thin Fine Pitch Ball Grid Array (4GB) - 11x11x1.2 mm Body [TFBGA]
click to zoom
3D Models
SAM9X60D6KT-I/4GB - Microchip - 3D model - BGA - 196-Lead Thin Fine Pitch Ball Grid Array (4GB) - 11x11x1.2 mm Body [TFBGA]
click to zoom

SAM9X60D6KT-I/4GB Details

  • Manufacturer Part Number:

    SAM9X60D6KT-I/4GB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    196

  • Manufacturer Package Code:

    TFBGA-196

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    5 Weeks

  • Date Of Intro:

    2019-09-23

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

SAM9X60D6KT-I/4GB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SAM9X60D6KT-I/4GB is -40°C to +85°C.
  • The clock source for the SAM9X60D6KT-I/4GB can be configured using the Clock Controller (CKGR) registers. You can choose from internal oscillators, external crystals, or external clock sources.
  • The maximum frequency of the ARM926EJ-S processor core in the SAM9X60D6KT-I/4GB is 600 MHz.
  • The power consumption of the SAM9X60D6KT-I/4GB in idle mode is typically around 100-150 mW, depending on the clock frequency and voltage supply.
  • Yes, the SAM9X60D6KT-I/4GB has an external memory interface that supports DDR2, DDR3, and LPDDR2 memories, as well as NAND Flash and SD/MMC interfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SAM9X60D6KT-I/4GB Overview

Use the download button to access the SAM9X60D6KT-I/4GB schematic symbol, PCB footprint, and 3D model.
